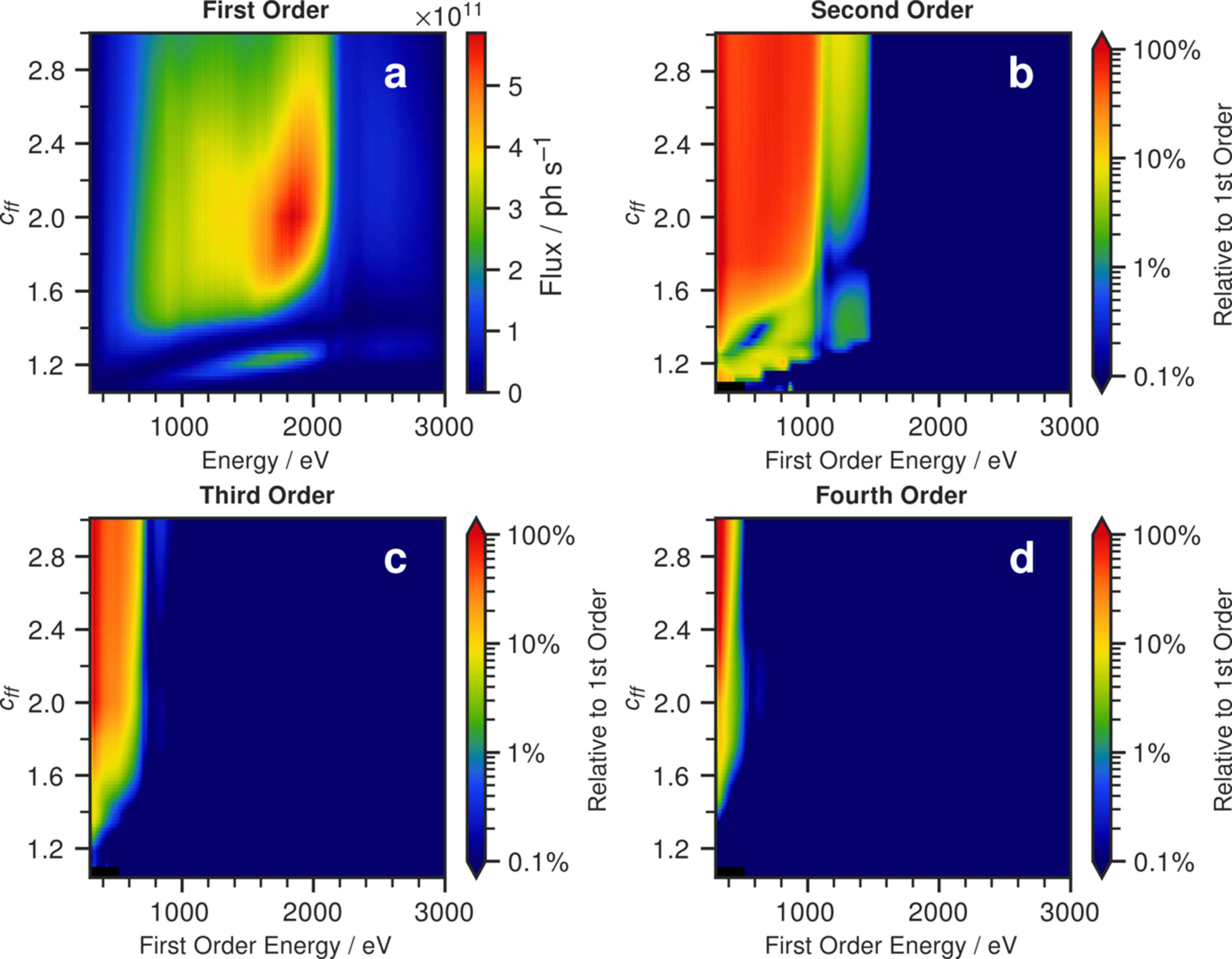

Figure 4
Results presented as four heat maps of (a) first order flux as a function of cff and energy; and second (b), third (c) and fourth (d) order flux relative to the first order flux as a function of cff and first order energy. Note the logarithmically scaled colour bars.
