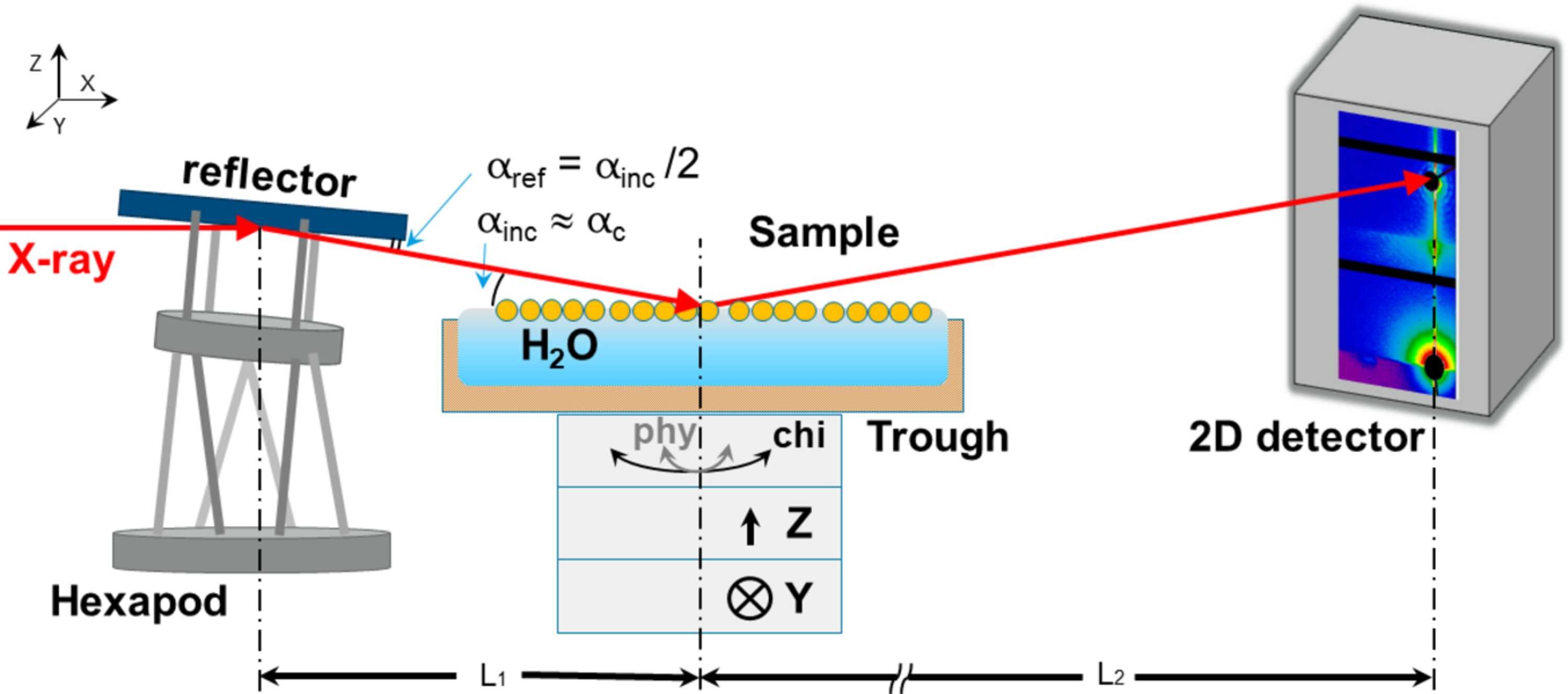

Figure 1
Schematic representation of the reflector and sample assembly combination for the USAXS setup. The reflector is positioned on a specialized holder mounted on a hexapod with six degrees of freedom. The Teflon liquid trough is mounted on the sample stage with the possibility of adjusting the horizontal position of the trough, as well as adjusting the air/liquid interface level in height and moving the sample perpendicular to the beam axis.
