Figure 2

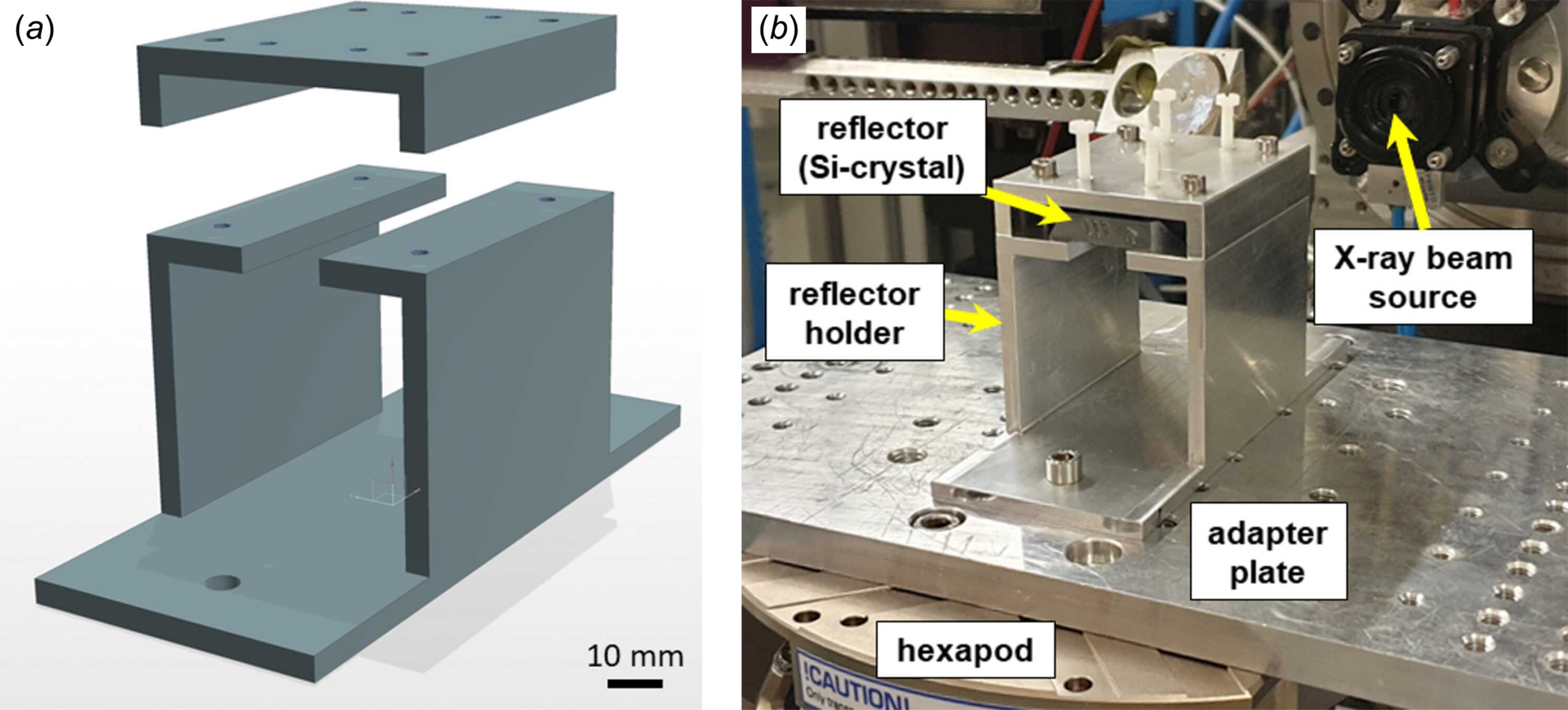

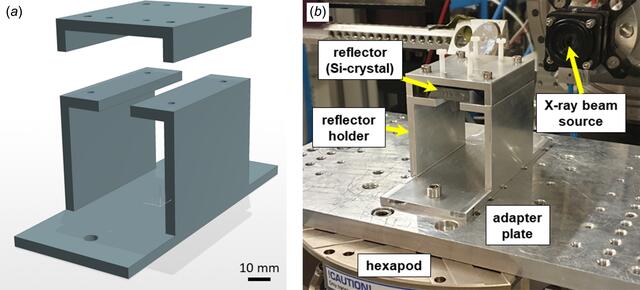

(a) Sketch of the reflector holder. The main (lower) part of the holder is designed for mounting the reflector plate at the top above the slot, reflective side down. The upper part is designed for soft pressing of the reflector by plastic screws to the main part of the holder. (b) Silicon reflector at final assembly, mounted on the hexapod in the experimental hutch.
