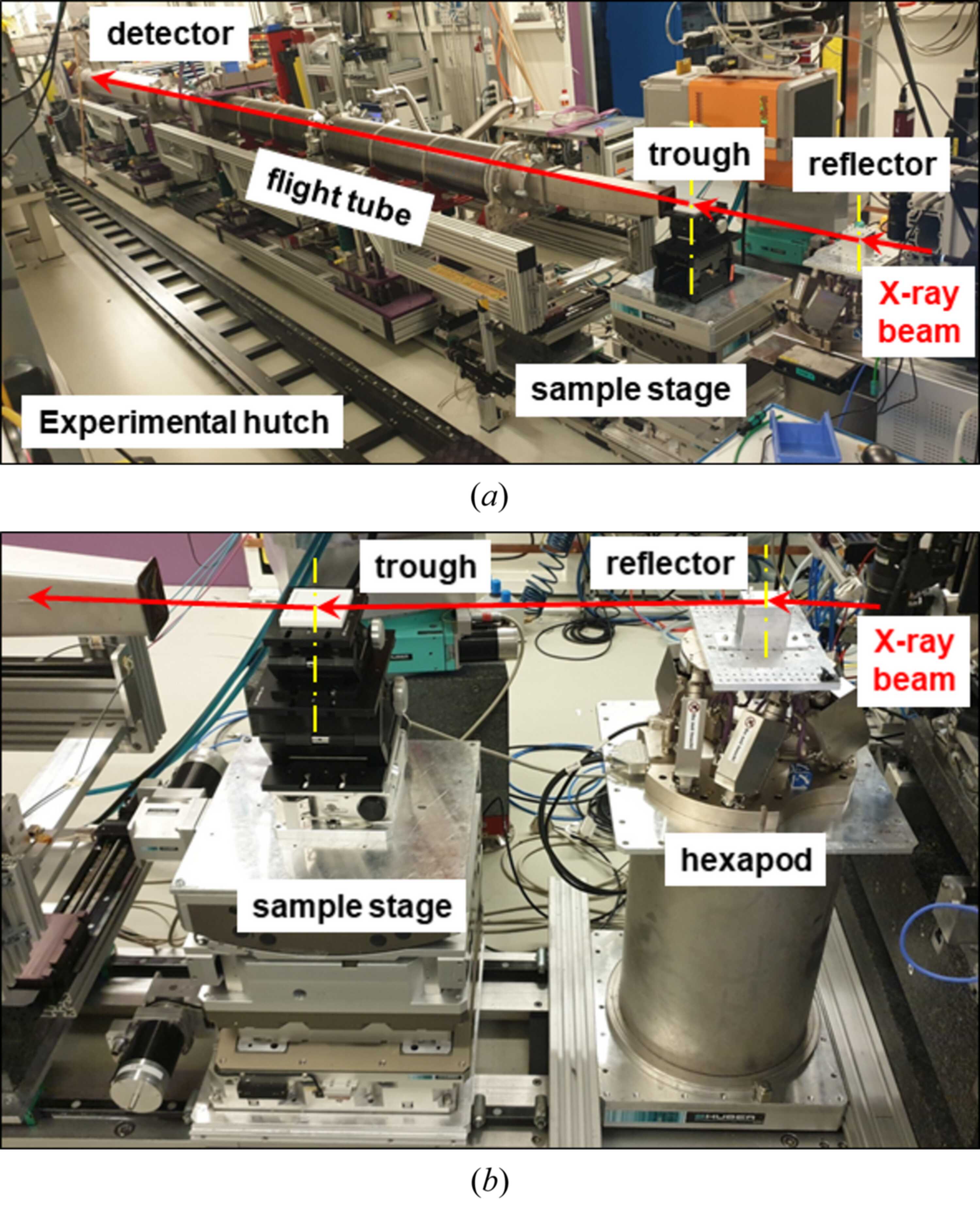

Figure 3
(a) General view of the setup with the realized scheme of tilting the X-ray beam onto a liquid surface for the USAXS study inside the experimental hutch EH1 of the P03 station at the PETRA III synchrotron (DESY, Hamburg, Germany). (b) The reflector assembly was placed on the hexapod and the sample assembly was placed on the Huber sample stage (side view). Propagation directions of a collimated monochromatic X-ray beam focused on the reflector. The vertical axes of the reflector and the sample are shown by yellow dashed-dotted lines.
