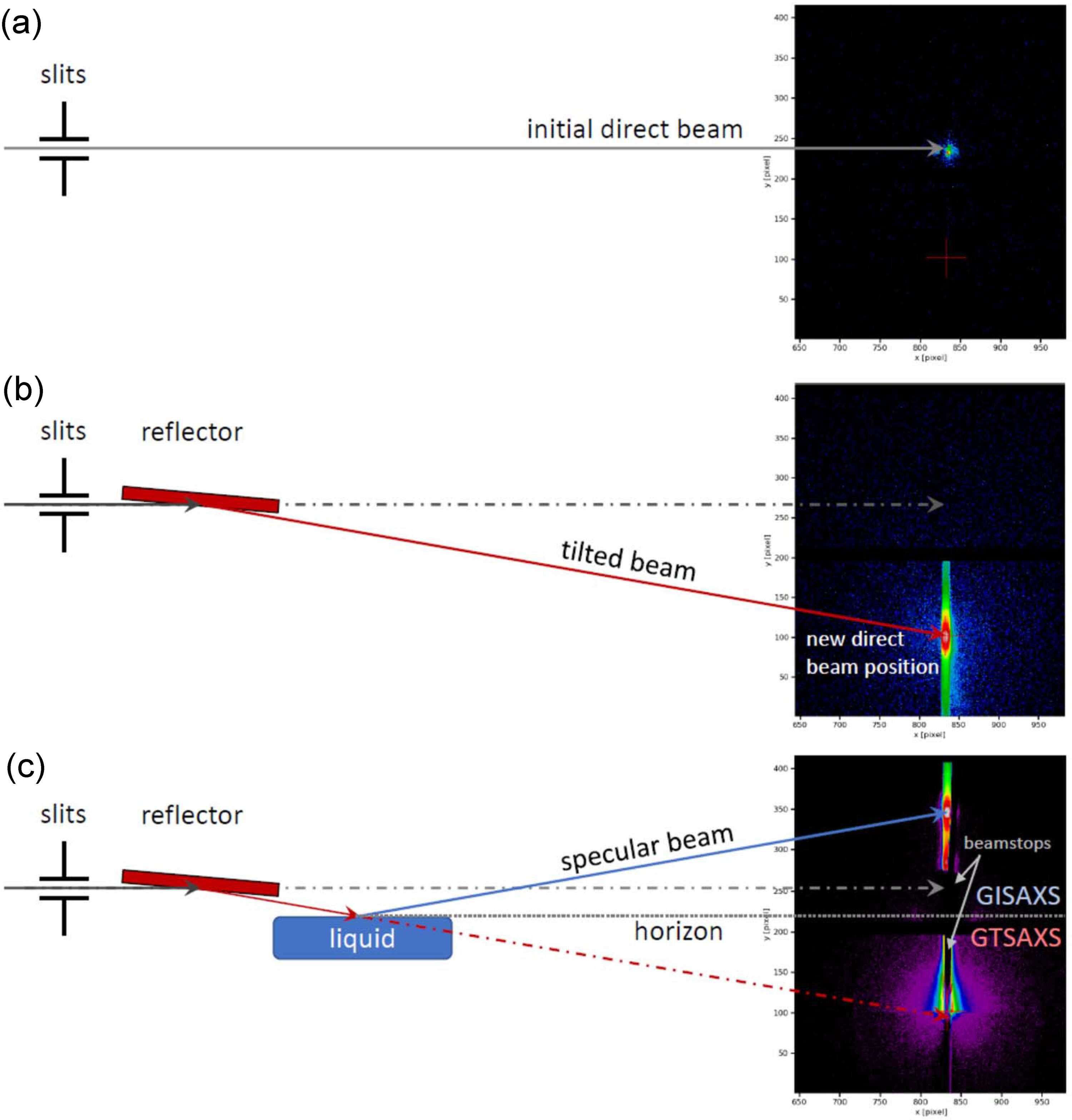

Figure 4
The geometry of the three different steps of the beam tilting procedure with the beam axes, main reflecting blocks and corresponding scattering image at the detector: (a) initial direct beam, (b) beam tilted by the reflector, and (c) transmitted and reflected beam from the liquid interface.
