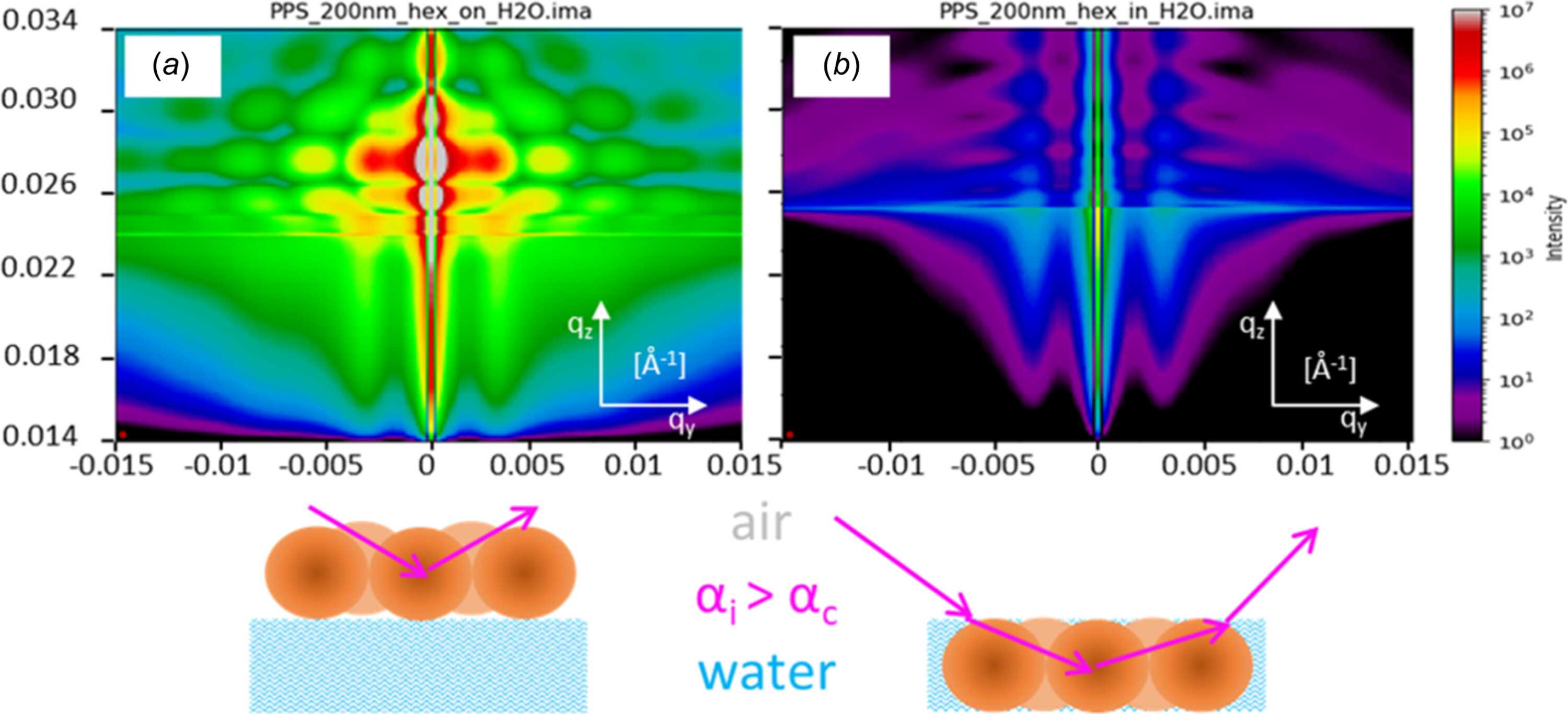

Figure 8
IsGISAXS simulation of representative GIUSAXS scattering patterns of 200 nm polystyrene nanoparticles self-assembled in a 2D-hexagonal lattice directly floating (a) on top and (b) below the air/water interface. The corresponding scattering intensity, scattering vectors as scale bars, and scattering geometry are indicated.
