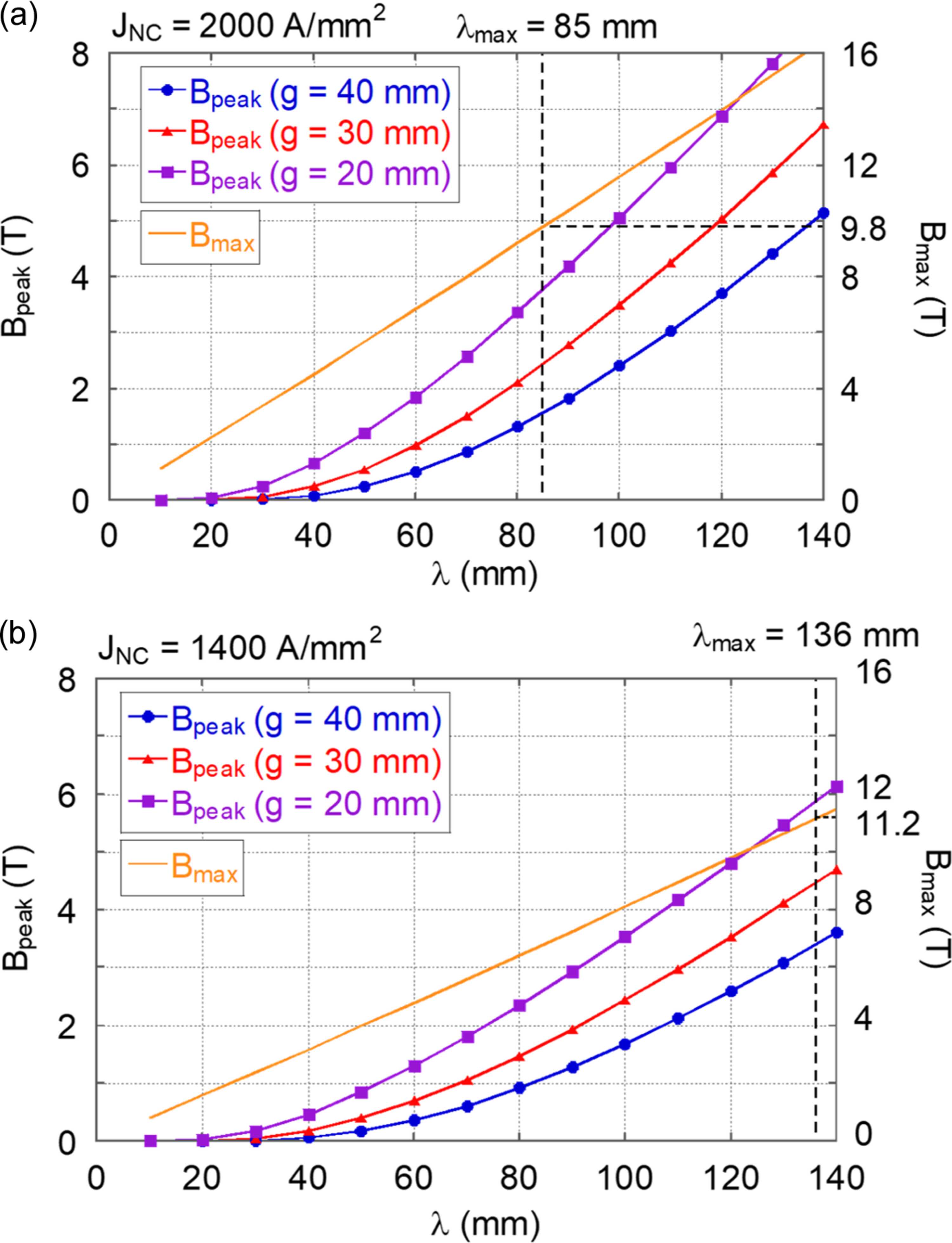

Figure 4
Period length dependence of the peak magnetic field Bpeak and maximum magnetic field inside the coil Bmax. (a) JNC = 2000 A mm−2. (b) JNC = 1400 A mm−2. The horizontal dashed line indicates Bmax corresponding to a load factor of 70%. The vertical dashed line shows the corresponding maximum allowable period length λmax. As the current density increases, λmax and the corresponding Bpeak significantly decrease.
