Figure 5

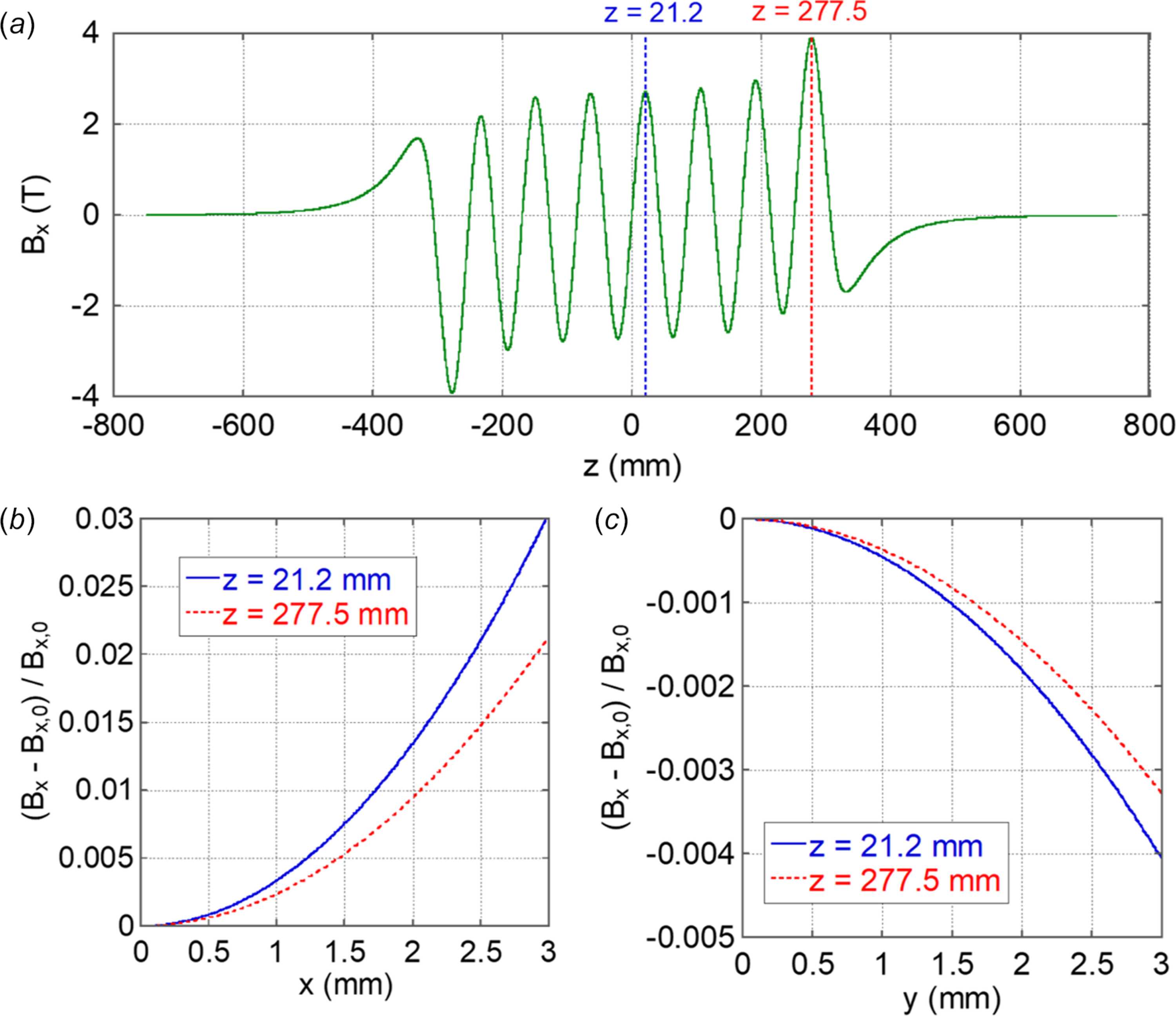

Magnetic field distribution and transverse magnetic field uniformity of the V-SC-MPW-1 with the number of coils of 15. (a) Magnetic field distribution along the beam axis. (b) Magnetic field uniformity in the horizontal direction. (c) Magnetic field uniformity in the vertical direction. The transverse magnetic field distributions are calculated at two peak positions: near the center (z = 21.2 mm) and near the end (z = 277.5 mm) shown in (a). They are shown as the relative deviation from the on-axis magnetic field Bx, 0, given by (Bx − Bx,0)/Bx,0. Due to symmetry, only the positive side is displayed.
