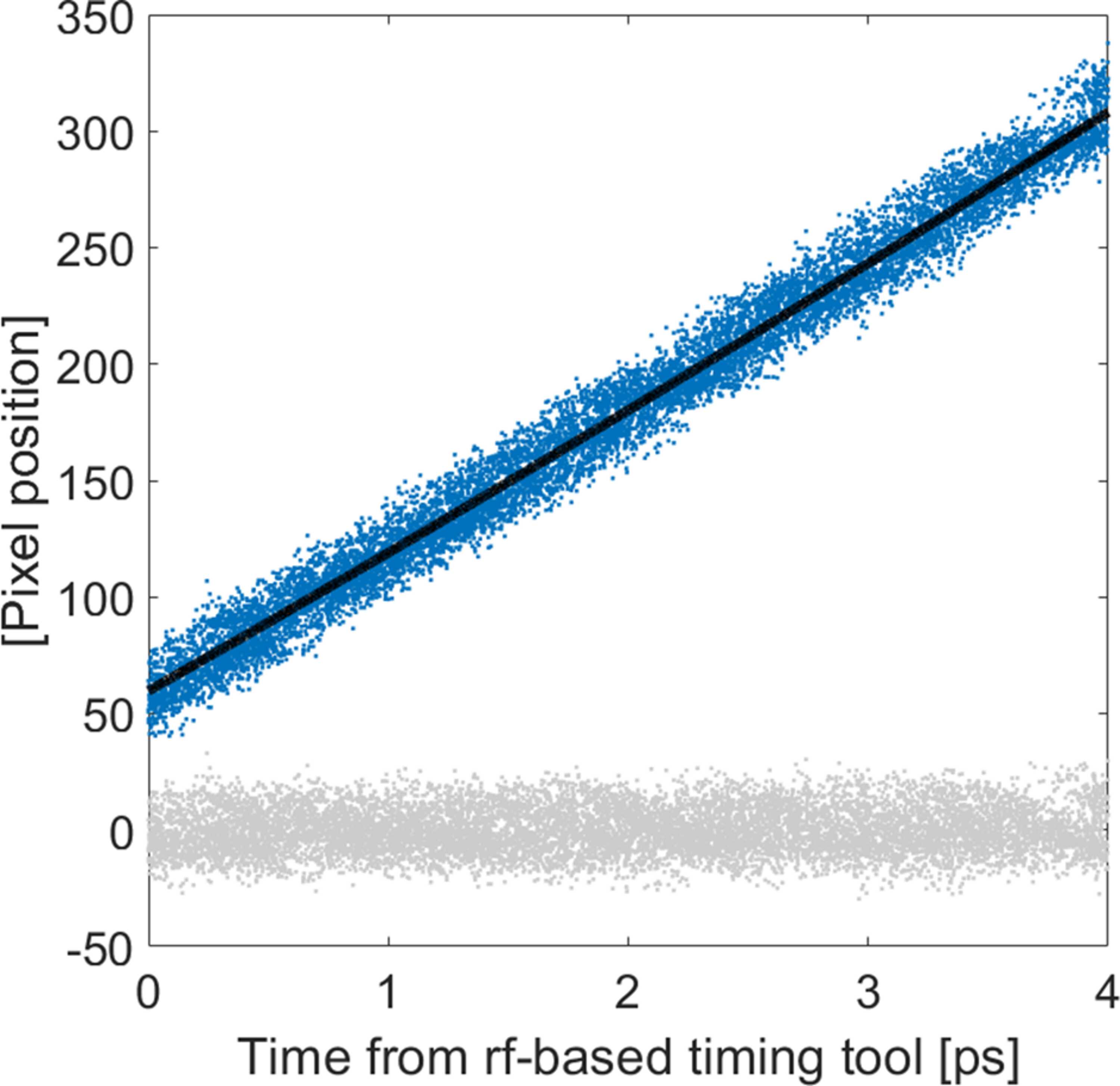

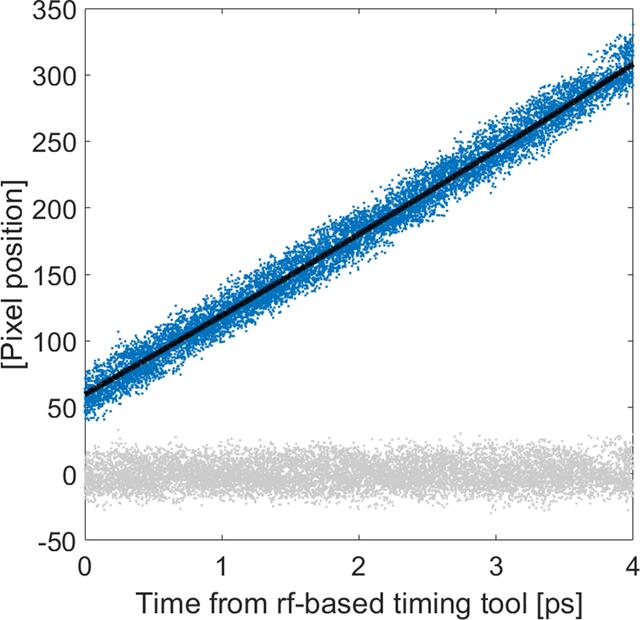

Data comparing the timing information from the ping timing monitor and the cross-correlator. These data are used for the temporal calibration. The noise is due to the 200 fs uncertainty of the ping. Ideally the fit would be linear, but a small second-order term has been added in order to obtain a flat residual over the full 4 ps. The residual, which is defined as the fit subtracted from the data, is plotted in gray.
