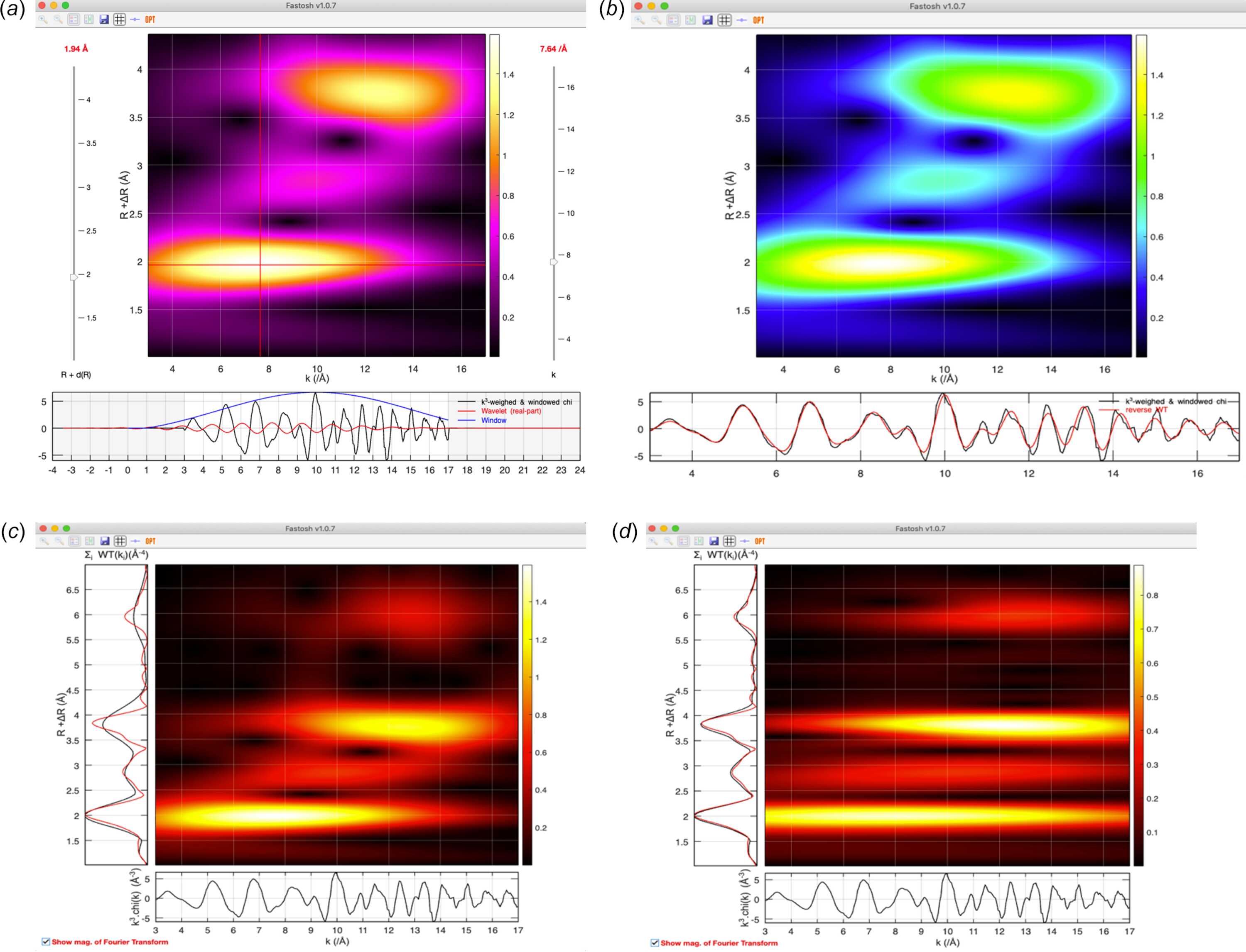

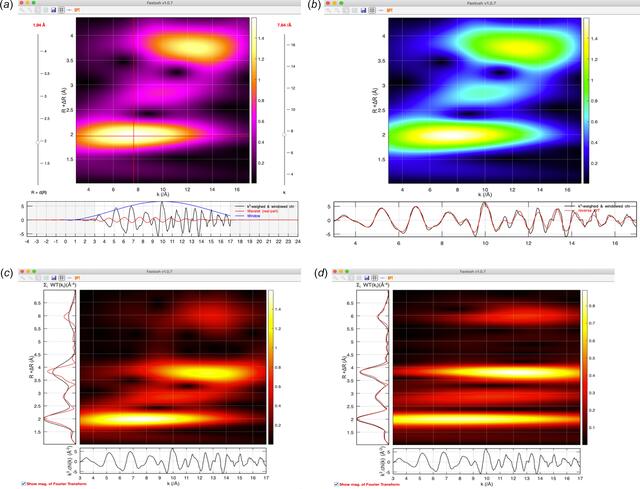

Figure 3
Wavelet transform plotting options: interactive window featuring the wavelet that is employed to process the chi for a given set of R and k values (a), window featuring the reverse WT spectrum (b), and window allowing the resolution in R space between the FT and WT to be compared, where the Cauchy n parameter was set to its default value (c) or fitted to equalize the WT and FT resolution in R space (d).
