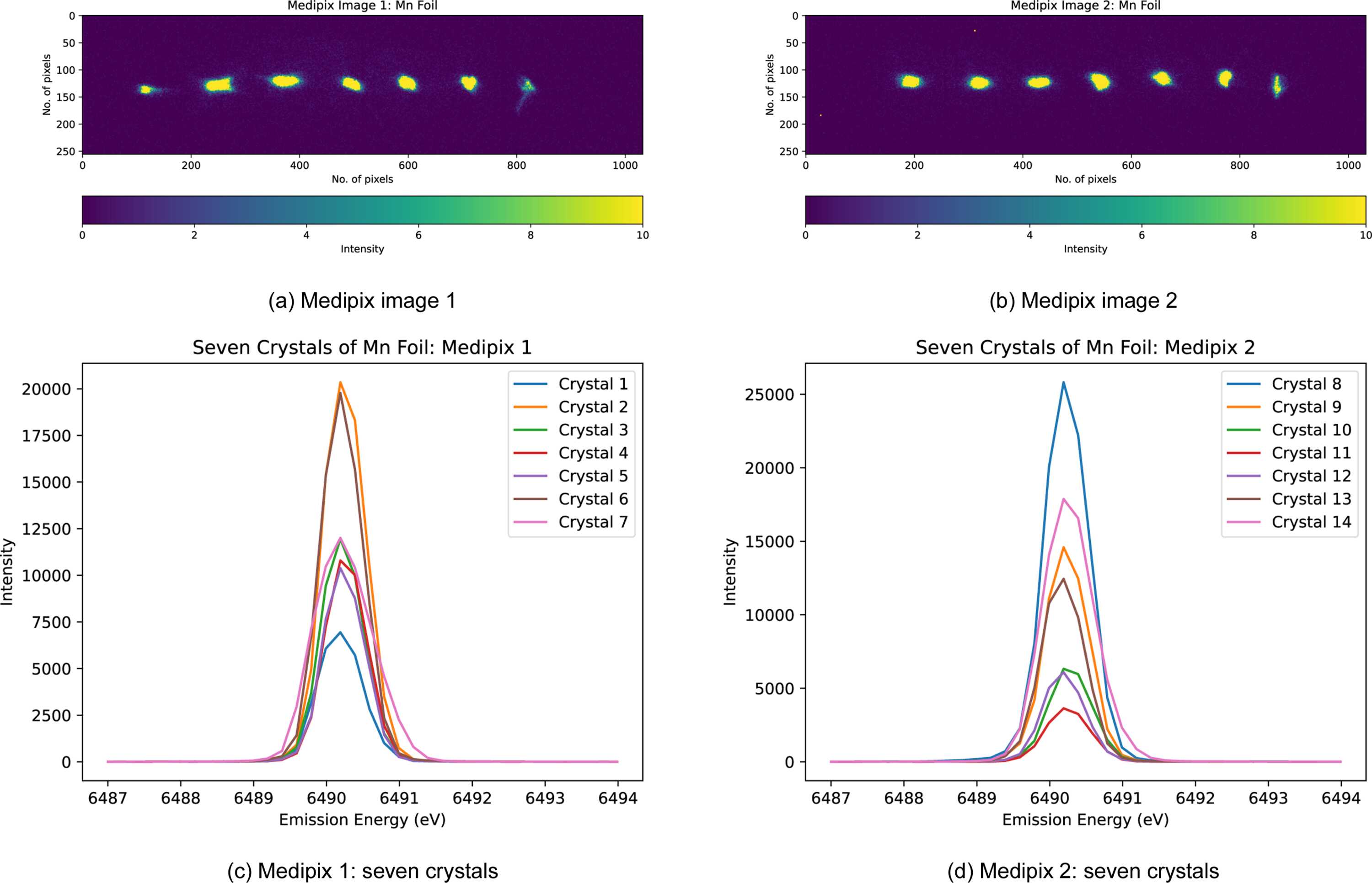

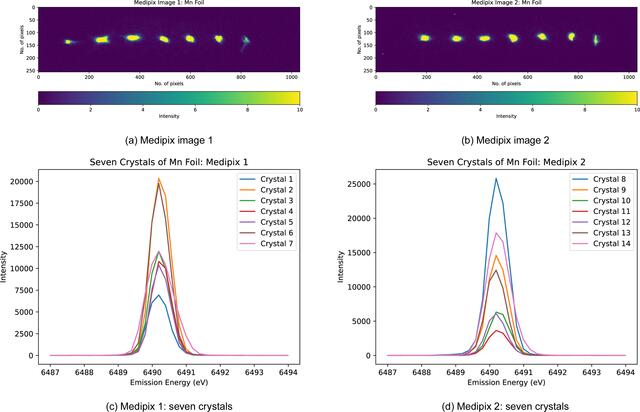

Figure 13
Two Medipix detector images of Mn foil at low temperature (LT = 11 K) (Experiment 4), aligned in the same horizontal space. The normal elastic scan of each individual analyser crystal was performed at the maximum of the Mn Kβ emission peak using the Si(440) reflection with the spectrometer at 84.2°. The crystal images are well aligned, achieving an accuracy of 0.1 eV.
