Figure 2

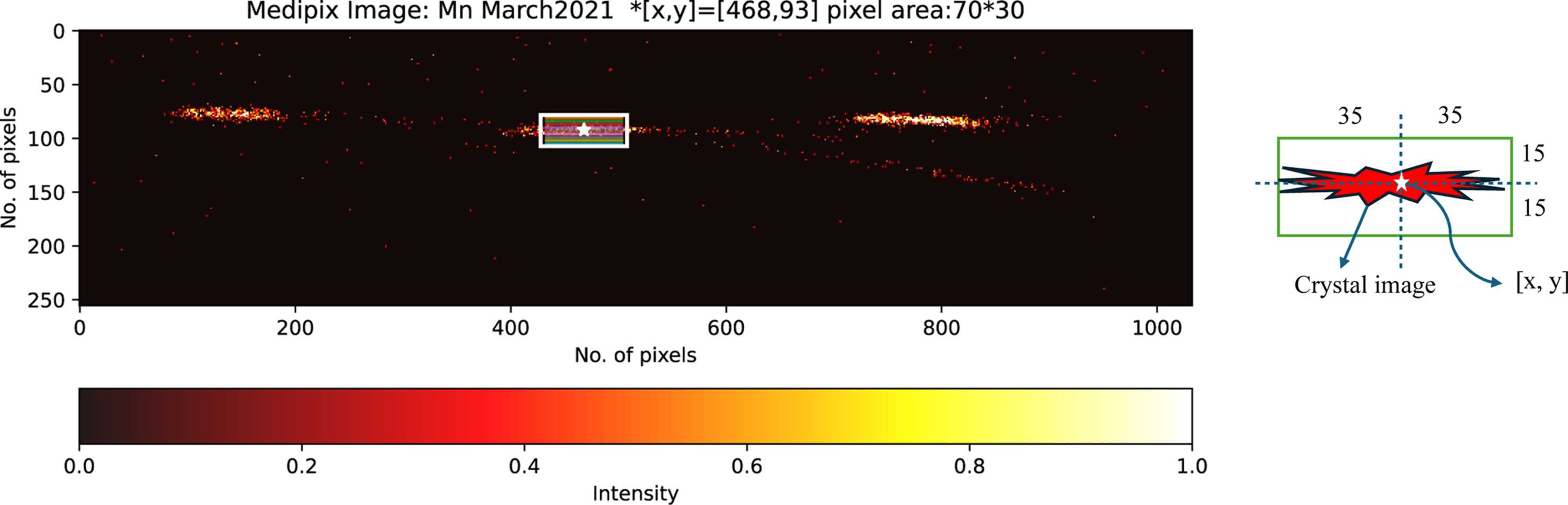

Image displaying reflections of the three Ge analyser crystals on the Medipix detector. The central crystal is highlighted by a white rectangular region of interest (ROI). A schematic diagram is on the right, showing a single crystal image (in red) and explaining the ROI selection process, with all dimensions in pixels. The white star marks the central coordinate (x, y) of the central analyser. The size and position of the ROI can be adjusted to give the best match to the focused image of the crystal on the detector.
