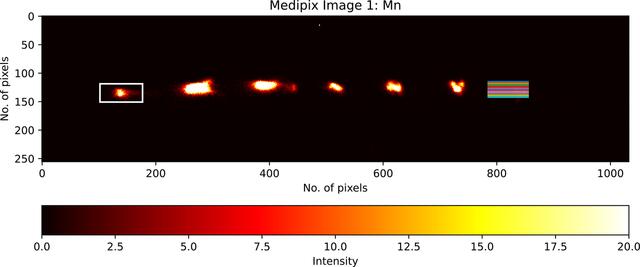

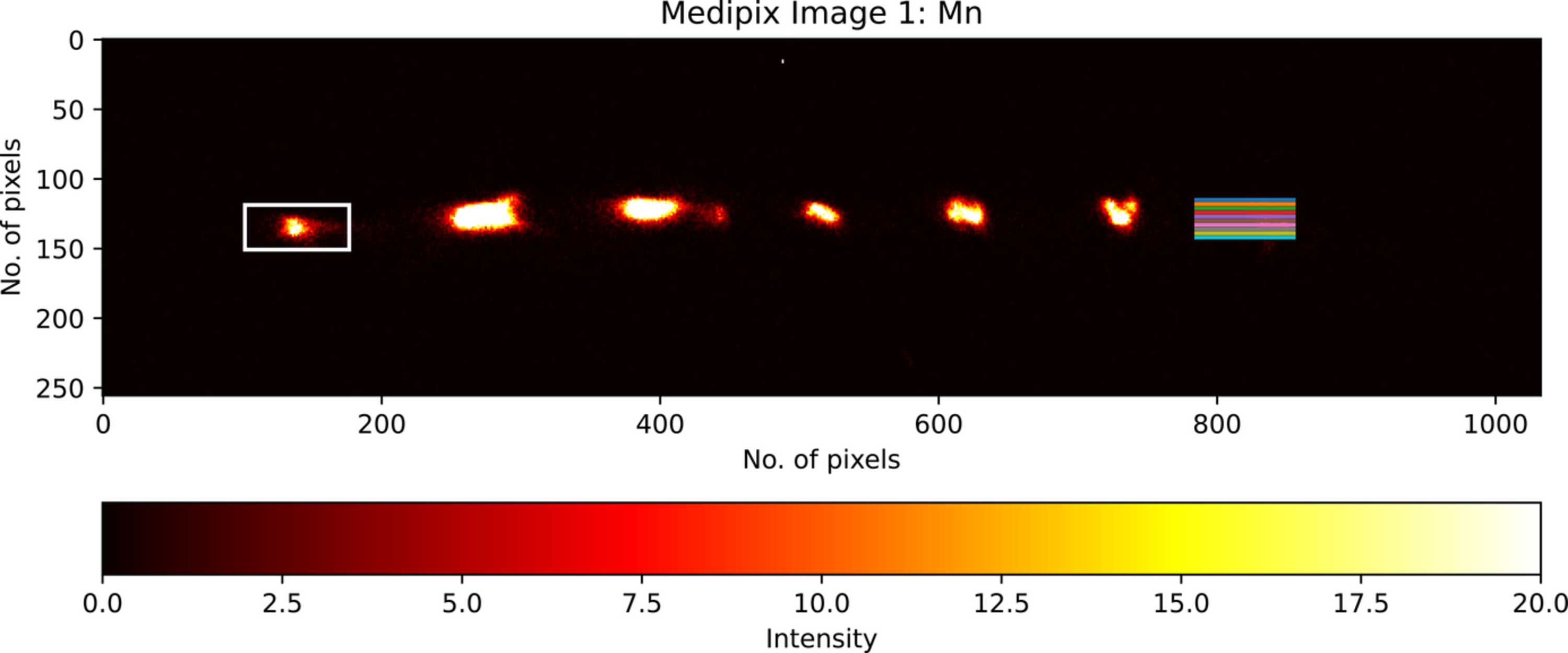

Figure 4
Representative Medipix image of manganese foil at an incident energy of 6490.4 eV, featuring the seven crystal analyser images on the first detector (Experiment 4). The first crystal image, highlighted by a white rectangle (70 × 30 pixels), represents our selected RoI and is referred to as raw or `unspliced' data. The final or seventh crystal image illustrates the ten bands or slices (each 70 × 3 pixels) selected for splicing, optimized based upon the image and geometry.
