Figure 2

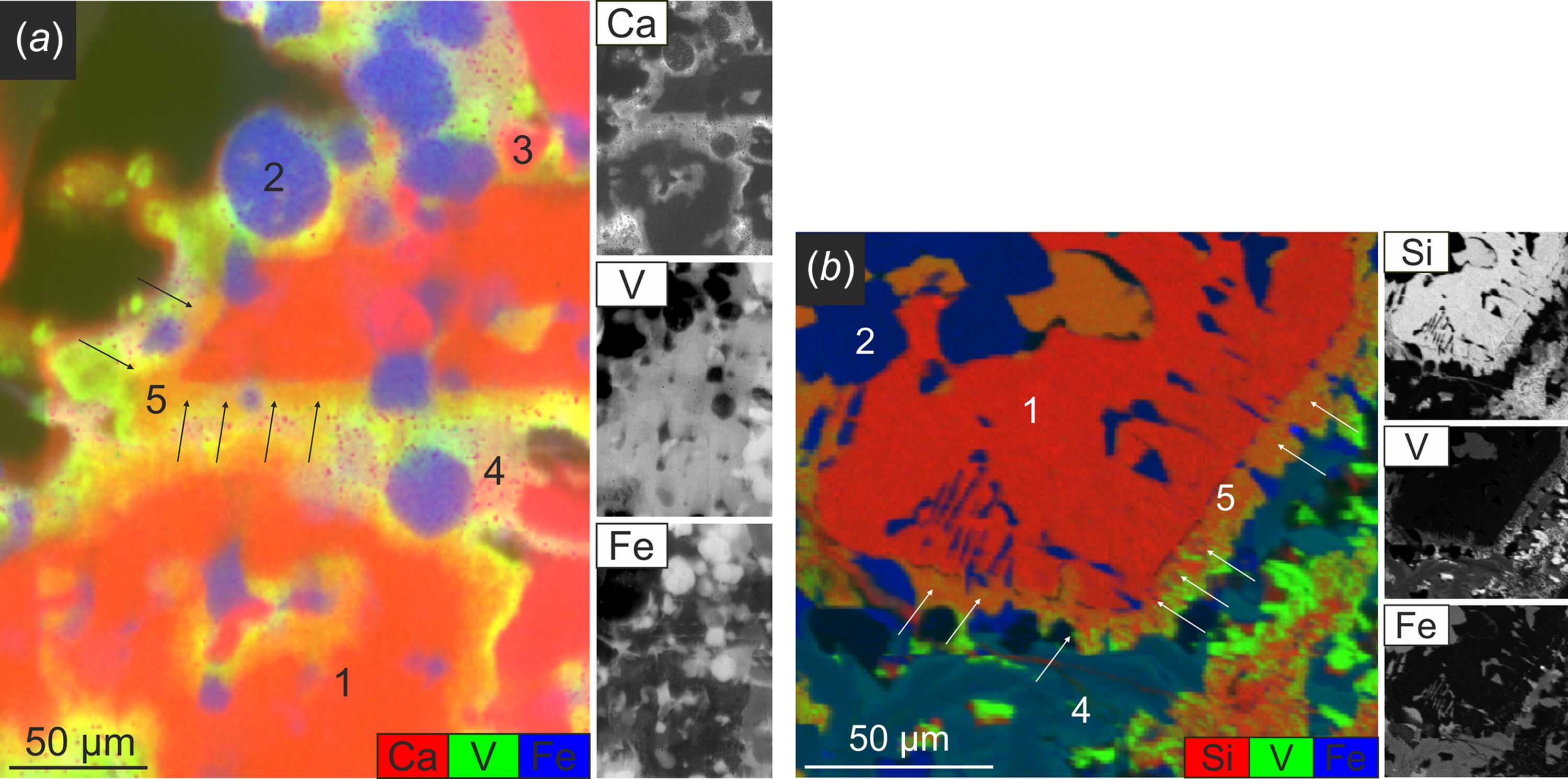

(a) MicroXRF data transferred to a RGB colour-coded image in a selected region and underlying element maps for calcium, vanadium and iron. (b) Colour-coded WDX map collected by EPMA [see World Steel Association (2023BB39) for information regarding the method] to add silicon information to Fig. 2[link](a) and underlying element maps for silicon, vanadium and iron. #1 corresponds to calcium silicates, #2 to wüstite, #3 to calcium oxide and #4 are calcium ferrites. #5 indicates a high vanadium region [black arrows in (a) and white arrows in (b)] around grains from type #1.
