Figure 7

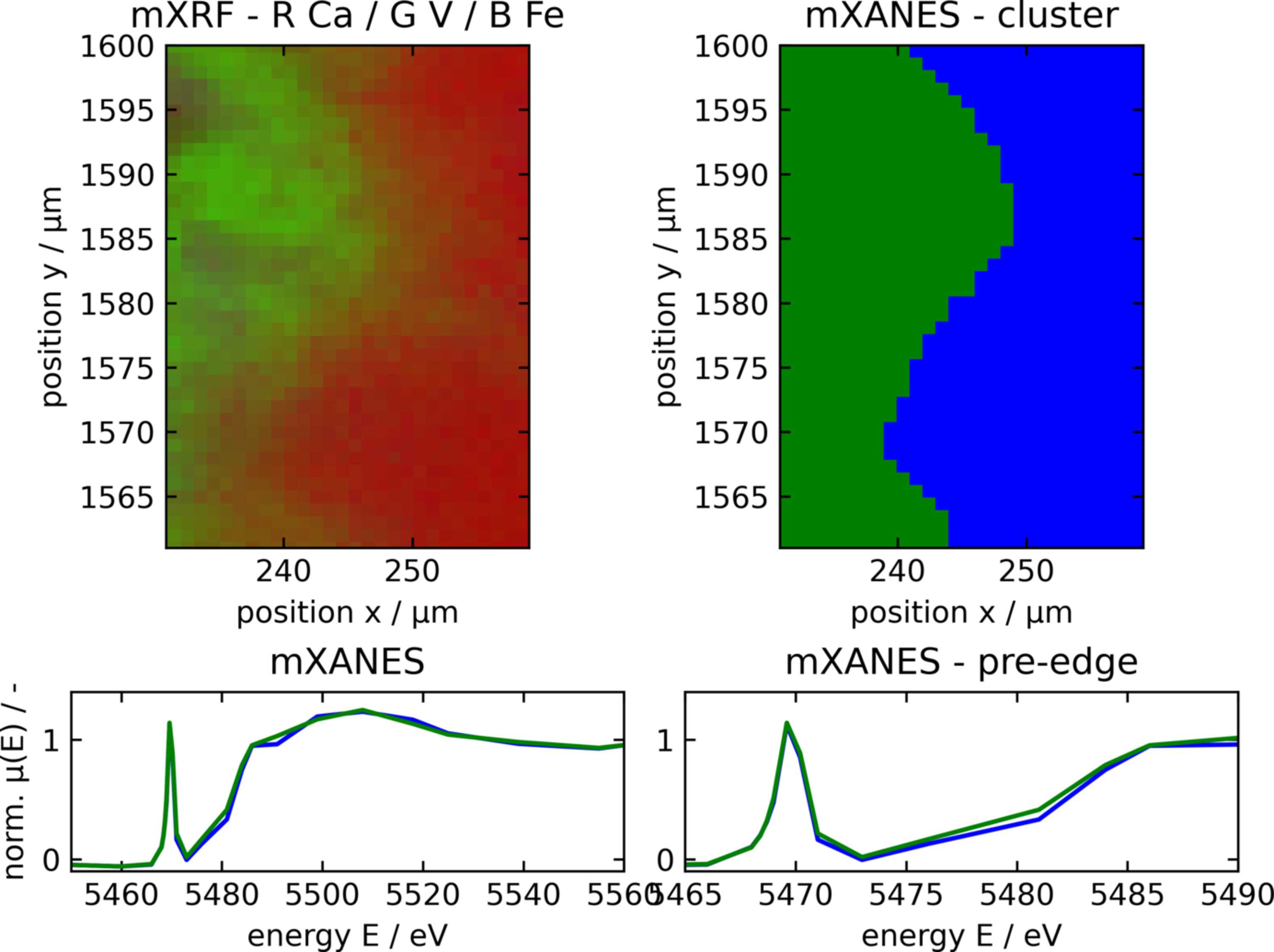

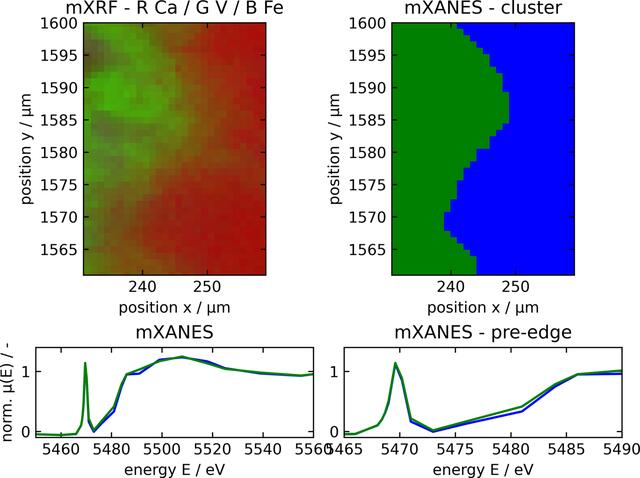

A microXRF image of a region of calcium silicates and vanadium compound around calcium silicates is presented, with colour code R = Ca and G = V (top left). The respective microXANES spectra collected in this region can be clustered according to their features, resulting in two clusters (top right). MicroXANES spectra of the two clusters are shown below, with blue corresponding to the calcium silicate and green to the vanadium compound around calcium silicates.
