Design and commissioning of the first superconducting undulator for the BioSAXS beamline at the Australian Synchrotron

Tan, Y.-R.E.; Porsa, S.; Zhu, D.; Kamma-Lorger, C.; Clulow, A.J.; Casalbuoni, S.; Grau, A.; Glamann, N.; Hobl, A.; Krichler, M.

doi:10.1107/S1600577525003418

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 14

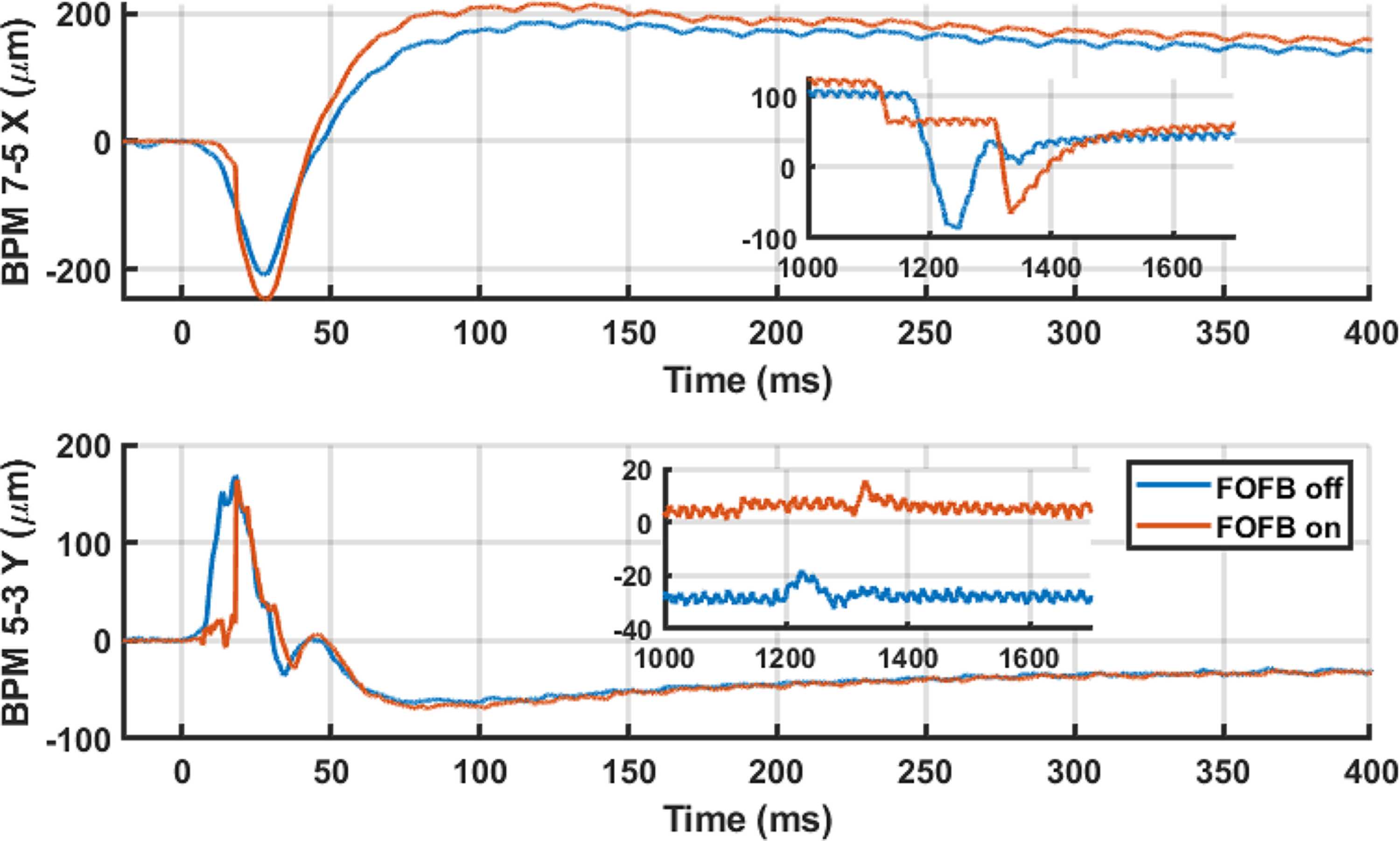

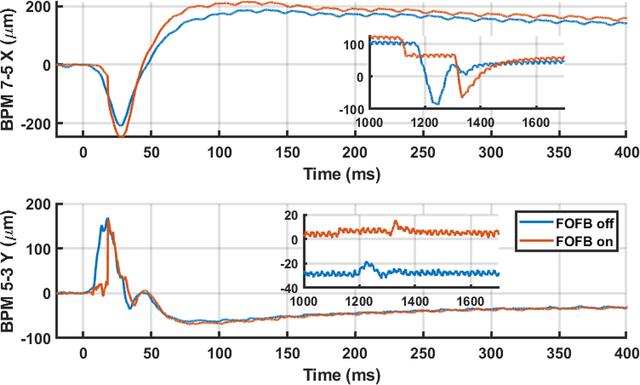

The maximum perturbation to the stored beam was recorded to be 250 µm (H) and 170 µm (V) which is below the orbit interlock limits. The disturbance is, however, too large for the fast orbit feedback system (FOFB) to correct and stops 20 ms after quench. The inset shows the disturbance from the AUX/HH correctors interlocking and turning off.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 32| Part 4| July 2025| Pages 908-918

https://doi.org/10.1107/S1600577525003418
