Figure 17

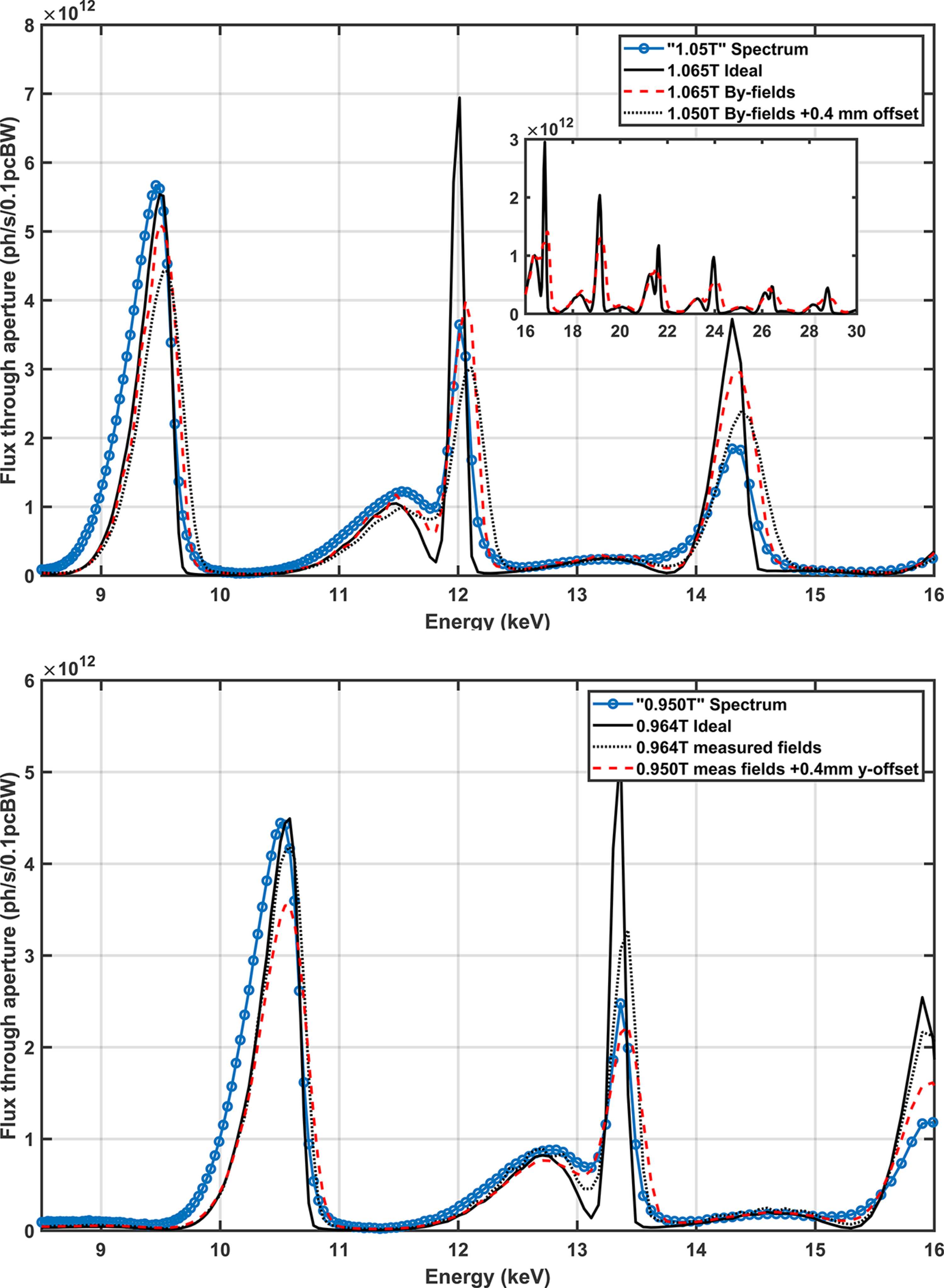

Beamline measurements of the SCU16 spectrum after a DMM with a 1% FWHM bandpass at 1.05 T (top) and 0.95 T (bottom) using the summed signal from a QBPM. The measured spectrum is in amps from the QBPM photodiodes and is scaled to compare against simulation expectations. The magnetic field from 1.084 T was scaled to 1.050 T and 1.065 T, then imported into SPECTRA to calculated the photon spectrum. The results imply that either the current for `1.05 T' is in reality 1.065 T or the beamline is significantly vertically misaligned. The same calculation was applied for the 0.95 T data set. The comparison was not conclusive in that either scenario could be the case. The inset shows the calculated spectrum from ideal and measured fields at 1.065 T.
