Design and commissioning of the first superconducting undulator for the BioSAXS beamline at the Australian Synchrotron

Tan, Y.-R.E.; Porsa, S.; Zhu, D.; Kamma-Lorger, C.; Clulow, A.J.; Casalbuoni, S.; Grau, A.; Glamann, N.; Hobl, A.; Krichler, M.

doi:10.1107/S1600577525003418

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

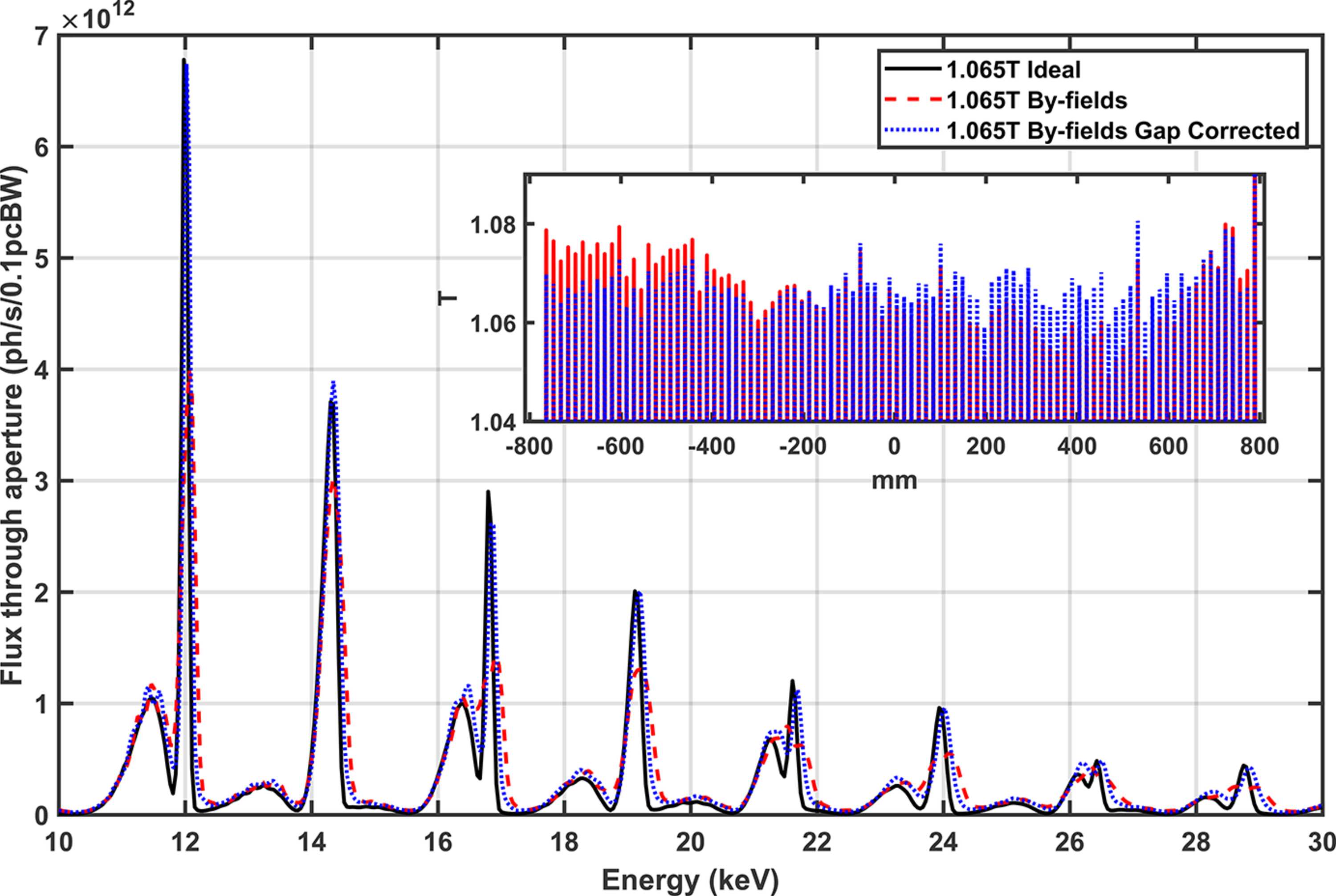

Figure 19
Comparison showing a near full recovery of the photon flux if the systematic gradient along the undulator could be corrected. The inset shows the measured magnetic field (red) and the same field linearly flattened field (blue) to mimic a small gap adjustment along the length of the magnet. The flattened field was use to calculate the `corrected' spectrum.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 32| Part 4| July 2025| Pages 908-918

https://doi.org/10.1107/S1600577525003418
