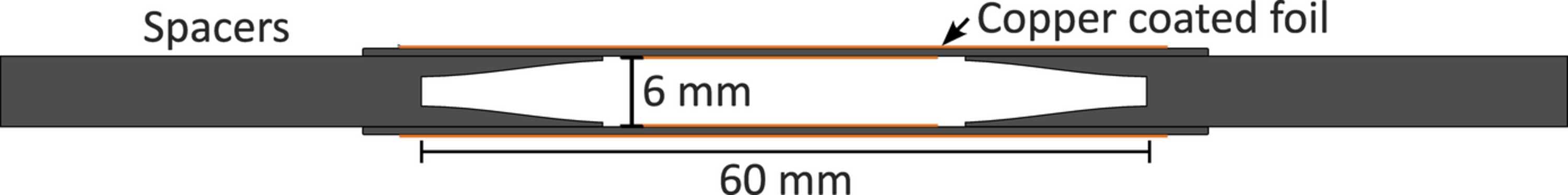

Figure 3
The internal dimensions of the chamber are 60 mm (H) by 6 mm (V). The 316LN stainless steel foils are 0.6 mm thick with 30 µm of galvanized copper on the inner and outer surfaces to increase thermal conductivity and help reduce the resistive wall impedance. The final vertical inner aperture should be 5.94 mm.
