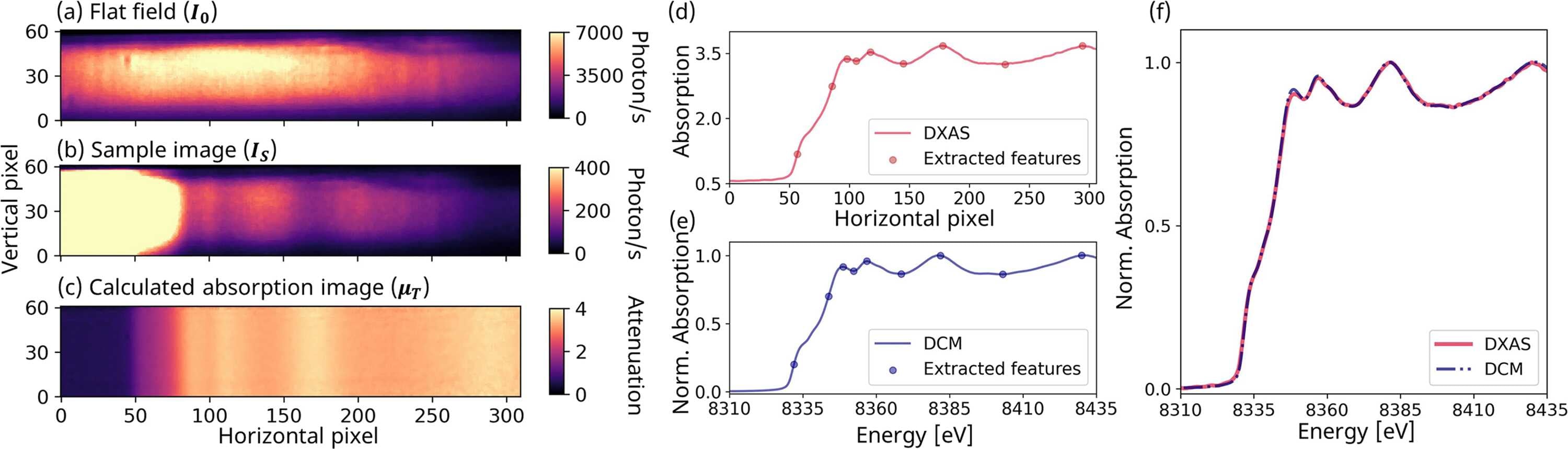

Figure 11
X-ray intensity images recorded by the pixel-array detector (pixel size of 55 µm) (a) without any sample, essentially a flatfield, denoted as I0, and (b) with a nickel-foil sample, denoted as IS. The images shown here are cropped from the full 500 × 500 pixel field-of-view of the detector for better visualization. (c) The corresponding absorption image, denoted as μT, calculated pixel-wise by Lambert–Beer's law. A median filter with a kernel size of 5 was applied to remove impulse noise. (d) Generated XANES spectrum as a function of pixel number from the absorption image. (e) A `standard' spectrum measured at a scanning DCM-based beamline (APS 20-BM) with the energy axis calibrated. In (d) and (e) several corresponding feature points are selected, which are used for energy calibration of the DXAS spectrum. A polynomial fit using the feature points yields an energy calibration function. (f) The final DXAS spectrum after application of the energy calibration function and the standard DCM spectrum.
