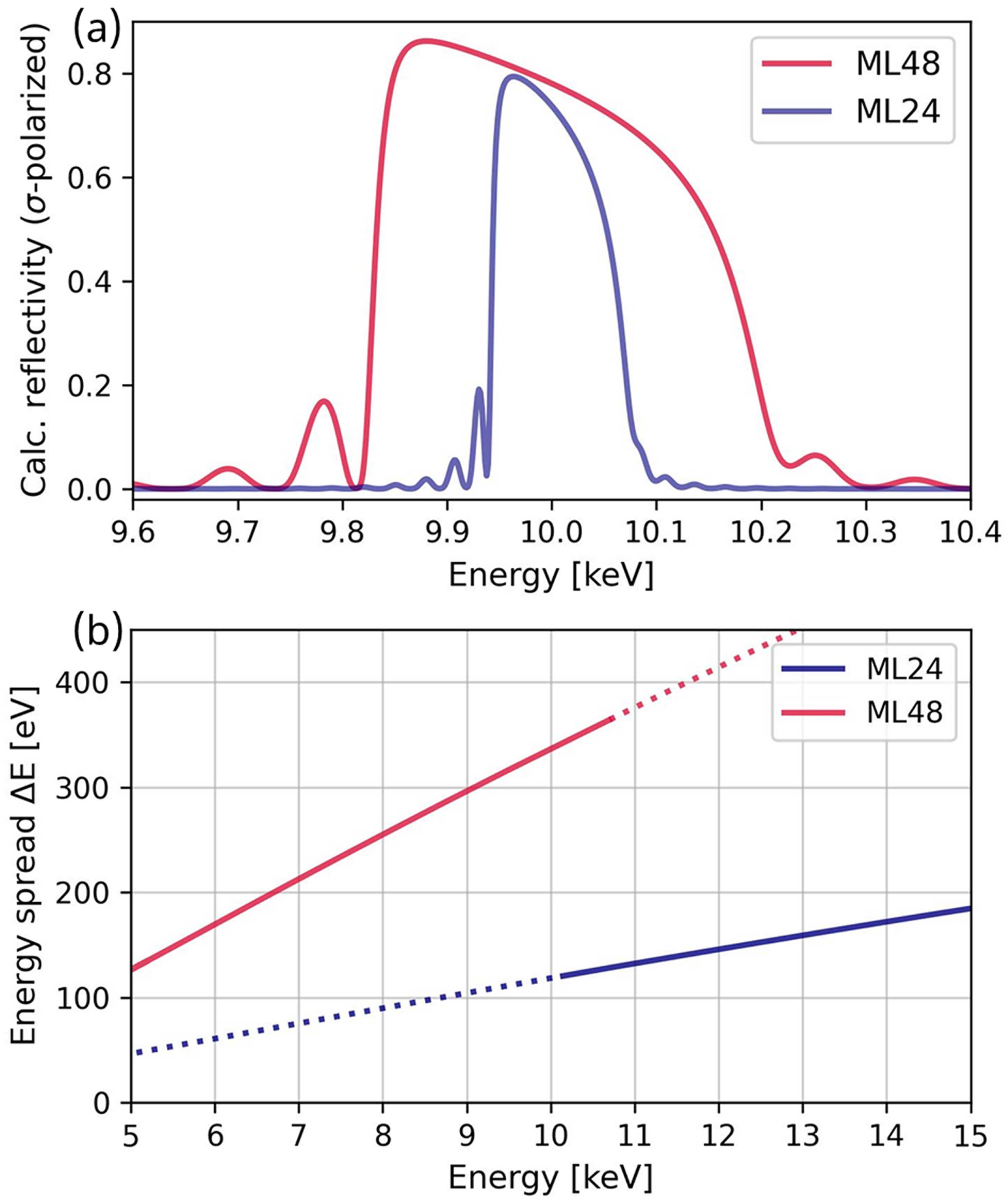

Figure 2
(a) Simulated reflectivity (σ-polarized) for the two multilayer sets with X-ray energy centered at 10 keV. The calculated FWHMs are 337 eV and 118 eV for ML 48 and ML 24, respectively. (b) The FWHM of the reflectivity profiles for ML 48 and ML 24 simulated over the range of 5–15 keV. The solid lines represent the operating energy ranges of the multilayers at APS Sector 25. The operational ranges are determined by the geometric design constraints of the DMM, whereby the second multilayer is not positioned to intercept X-rays of energies outside of the operating range that are reflected from the first multilayer.
