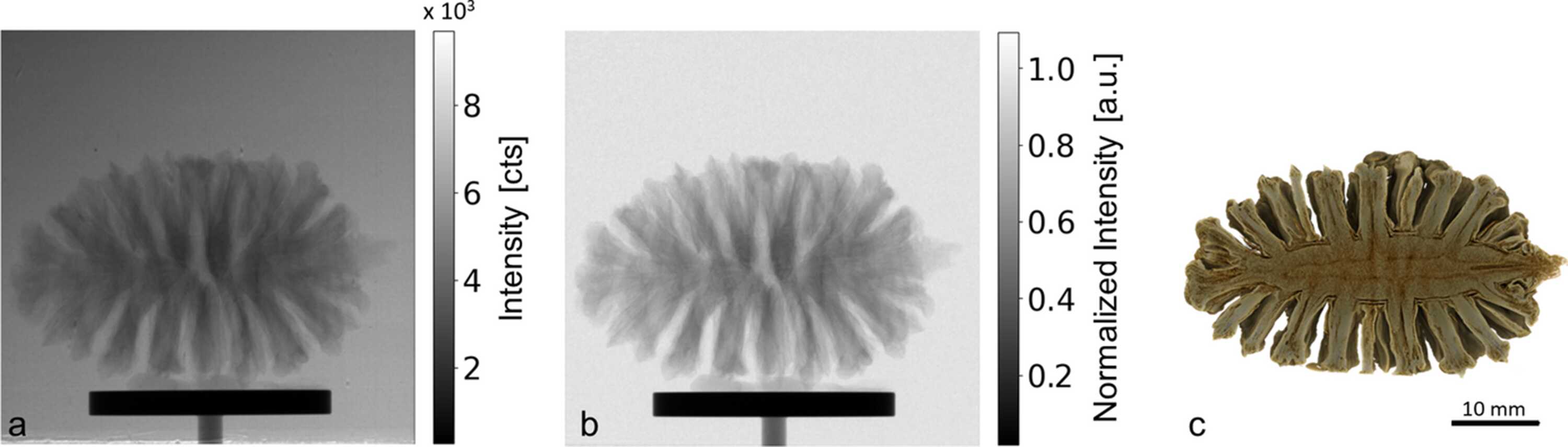

Figure 14
Tomographic measurement of a full pinecone with monochromated beam at 30.5 keV. The FOV of 5 cm × 5 cm (H × V) has been illuminated by the beam magnified by means of a Bragg-magnifier conditioner, achieving a flux corresponding to ∼500 X-ray photons pixel−1 s−1 (49.5 µm pixel size). The scale bar is equal in all of the images. (a) Projection image as recorded by the detector. (b) Flat-field-corrected image. (c) Cut in the centre volume rendering of the 3D tomography reconstruction obtained using Drishti (Limaye, 2012BB41).
