Figure 15

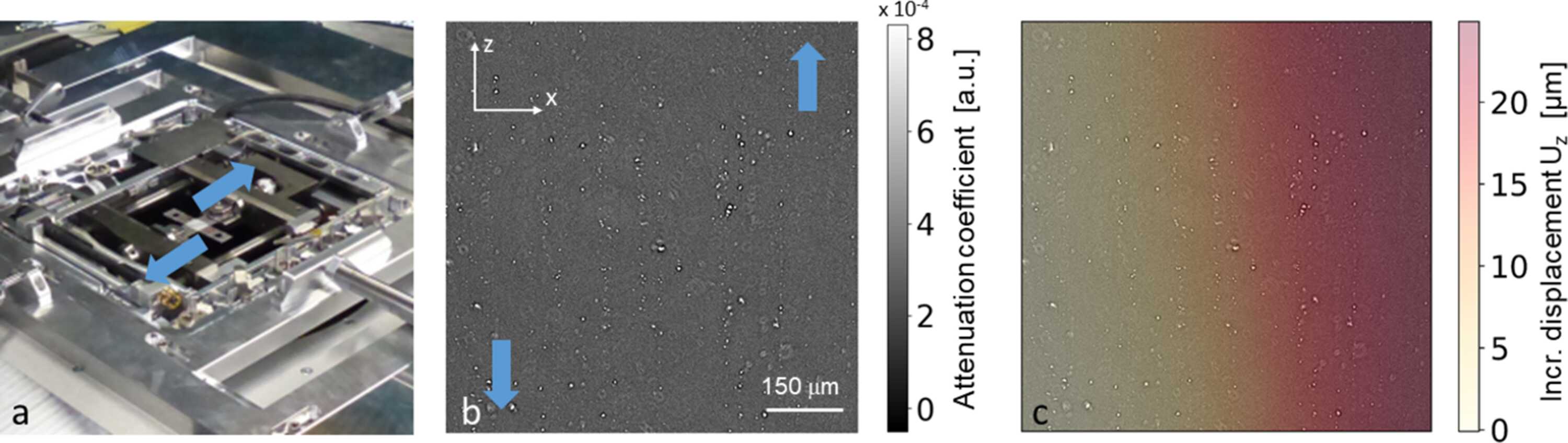

In situ lamino­graphy measurement for the characterization of deformation and microstructural change in a material under shear. The blue arrows indicate the loading direction. (a) Dedicated in situ loading device integrated into the LAMINO-II station. (b) Slice of the reconstructed sample volume showing the aluminium matrix (grey) and intermetallic particles (white) at the ROI at the sample centre. (c) Overlay of (b) with one component of the extracted displacement field.
