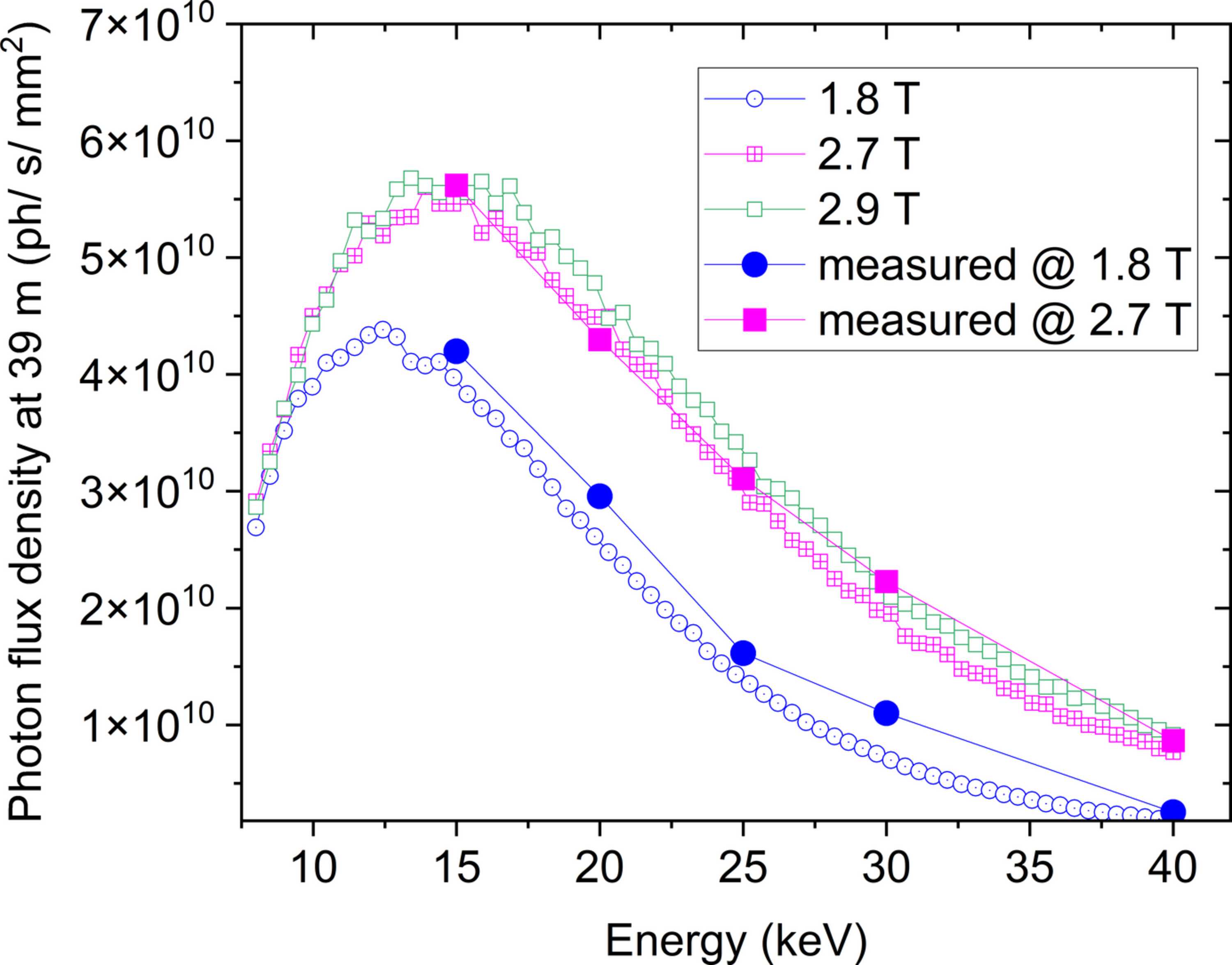

Figure 6
Calculated DCM photon flux densities at 39 m from the source for different magnetic fields of the wiggler (calculations performed with XTRACE). The solid circles/squares correspond to the flux density measurements performed using a Hamamatsu S3590-09 diode at 1.8 T and 2.7 T magnetic field, respectively. The simulations and experimental points refer to the on-axis performance of the DCM (for off-axis performance see the supporting information).
