The IMAGE beamline at the KIT Light Source

Cecilia, A.; Simon, R.; Hamann, E.; Zuber, M.; Faragó, T.; Haenschke, D.; Hurst, M.; van de Kamp, T.; Bauer, S.; Spiecker, R.; Czyzycki, M.; Gasilov, S.; Ershov, A.; Reszat, J.-T.; Baumbach, T.

doi:10.1107/S1600577525003777

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 7

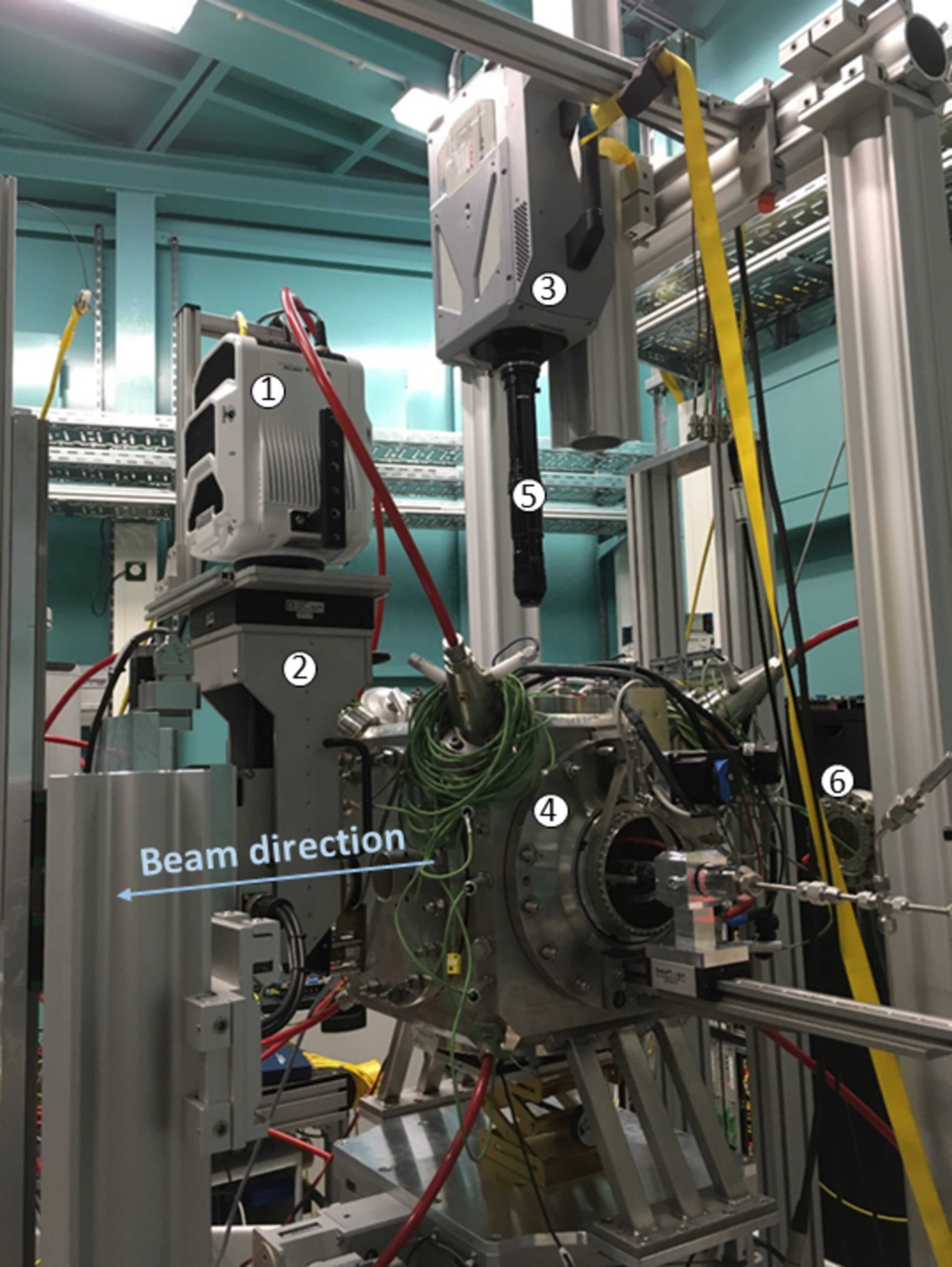

Custom set-up used in Experimental hutch 1 for operando tomography of injection sprays: (1) Phantom v2640 camera, (2) macroscope, (3) Photron Fastcam SA-Z camera, (4) injection chamber, (5) Navitar long-distance microscope objective, (6) beam exit.
