The IMAGE beamline at the KIT Light Source

Cecilia, A.; Simon, R.; Hamann, E.; Zuber, M.; Faragó, T.; Haenschke, D.; Hurst, M.; van de Kamp, T.; Bauer, S.; Spiecker, R.; Czyzycki, M.; Gasilov, S.; Ershov, A.; Reszat, J.-T.; Baumbach, T.

doi:10.1107/S1600577525003777

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 8

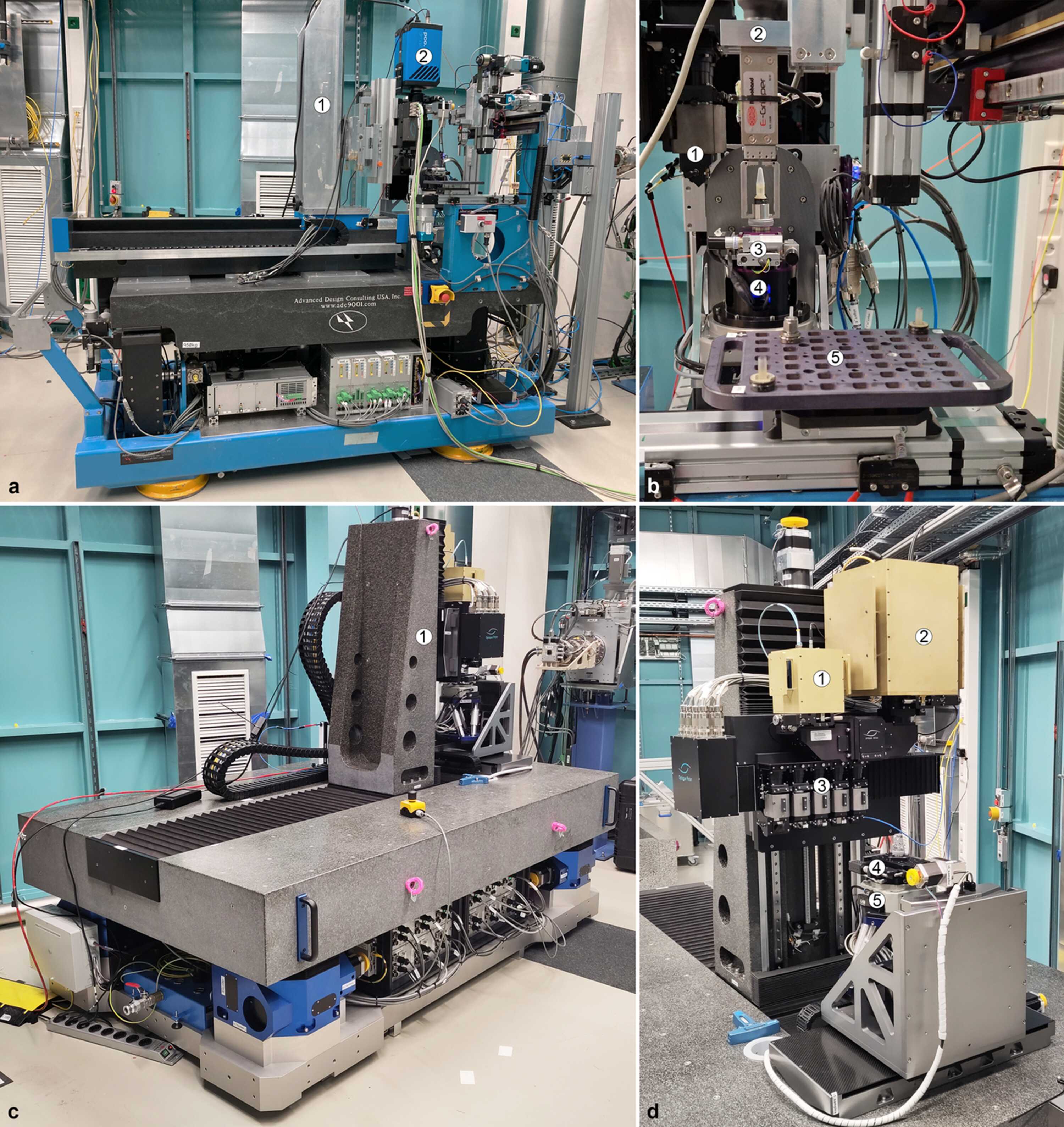

(a) UFO-I station for high throughput tomography in Experimental Hutch 2: (1) motorized detector tower, (2) pco.dimax camera. (b) Detail of the UFO-I sample exchanger with a tray for 49 samples: (1) white beam microscope, (2) sample changer gripper, (3) sample x–y linear stages, (4) rotary stage, (5) sample tray. (c) UFO-II during commissioning in Experimental Hutch 2: (1) detector tower. (d) Detail of the UFO-II quintuple magnification microscope and sample manipulator: (1) radiation shielded pco.edge5.5 camera, (2) radiation shielded Phantom v2640 camera, (3) visible light microscope with five different magnifications and camera branch selector, (4) sample x–y linear stage, (5) rotary stage.
