Figure 1

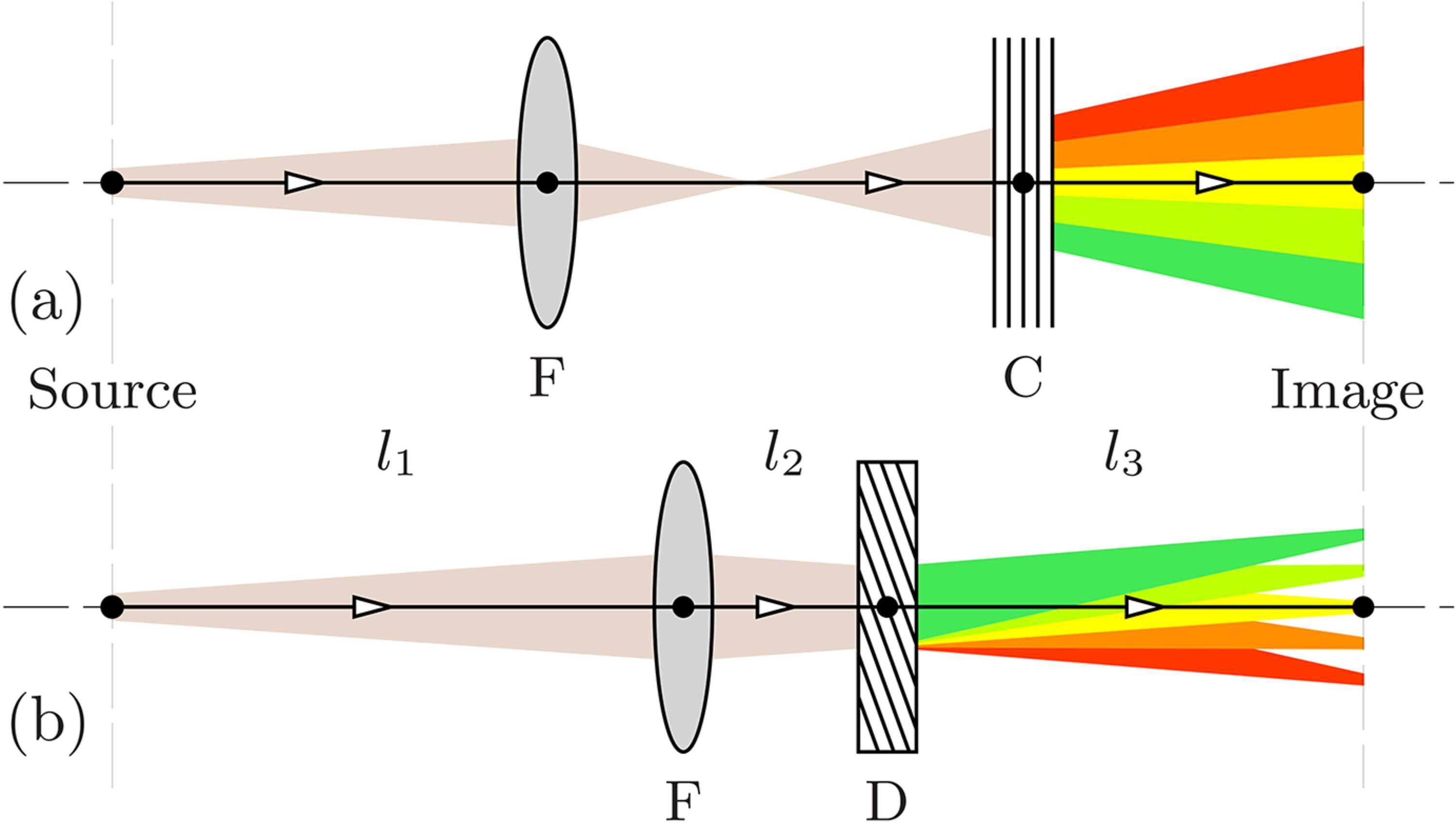

Schematics of spectrographs for imaging photon spectra from X-ray sources in a single shot. (a) Spectral filter spectrograph with Bragg reflecting crystal C and focusing element F. (b) Angular dispersive spectrograph with dispersing element D — a Bragg reflecting crystal with reflecting atomic planes at a nonzero angle to the crystal surface — and focusing element F.
