Figure 4

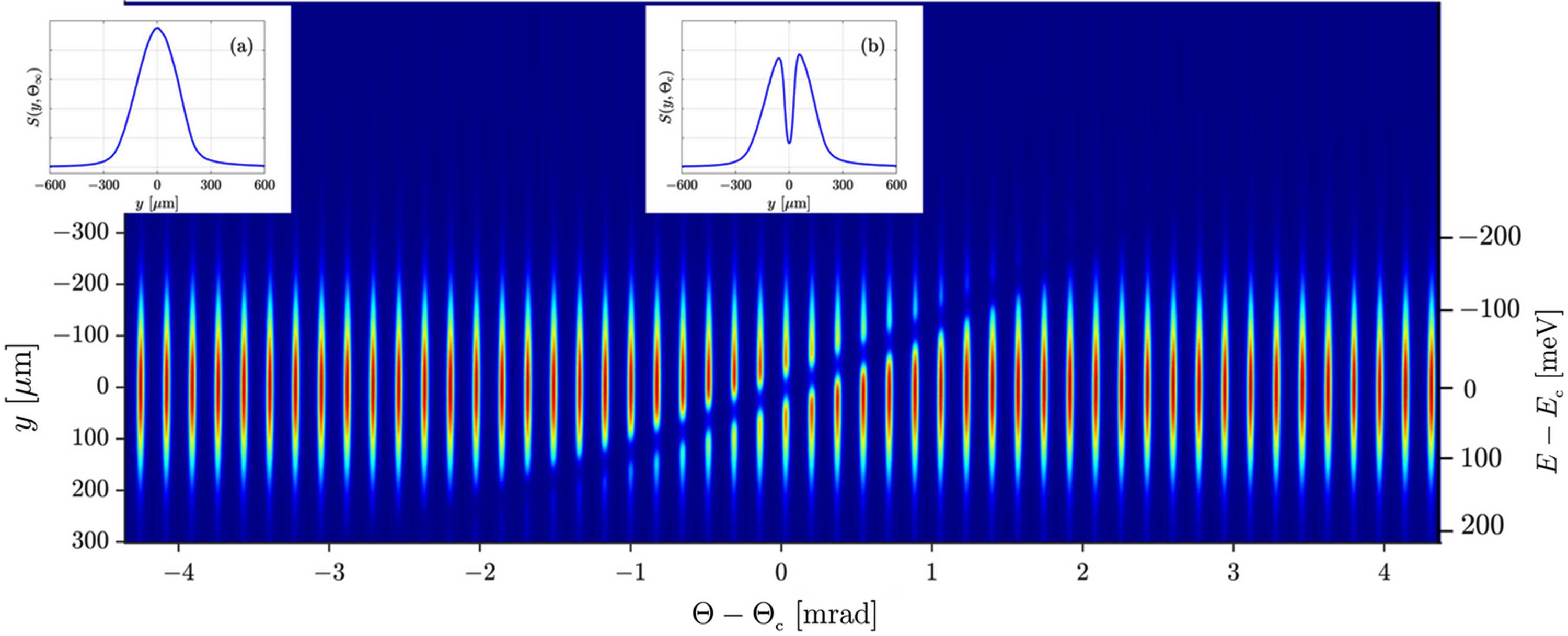

A sequence of X-ray spectrograph images similar to that in Fig. 3[link](b) but taken here with spectral resolution probe C440 in the beam and angular deviation Θ from the exact Bragg back reflection being changed incrementally. Inserts show examples of spectral profiles S(y, Θ) taken at selected angles Θ∞ = 4.91 mrad [inset (a)] and Θc = 9.26 mrad [inset (b)]. The Θ scale is centered at Θc = 9.259 mrad; this value corresponds to the notch in the middle of the spectral window of imaging [inset (b)]. The energy scale E − Ec = [y/G^{\,{\rm{(exp)}}}] is obtained using the linear dispersion rate [G^{\,\rm{(exp)}}] derived from these images as detailed in the discussion of Fig. 5[link].
