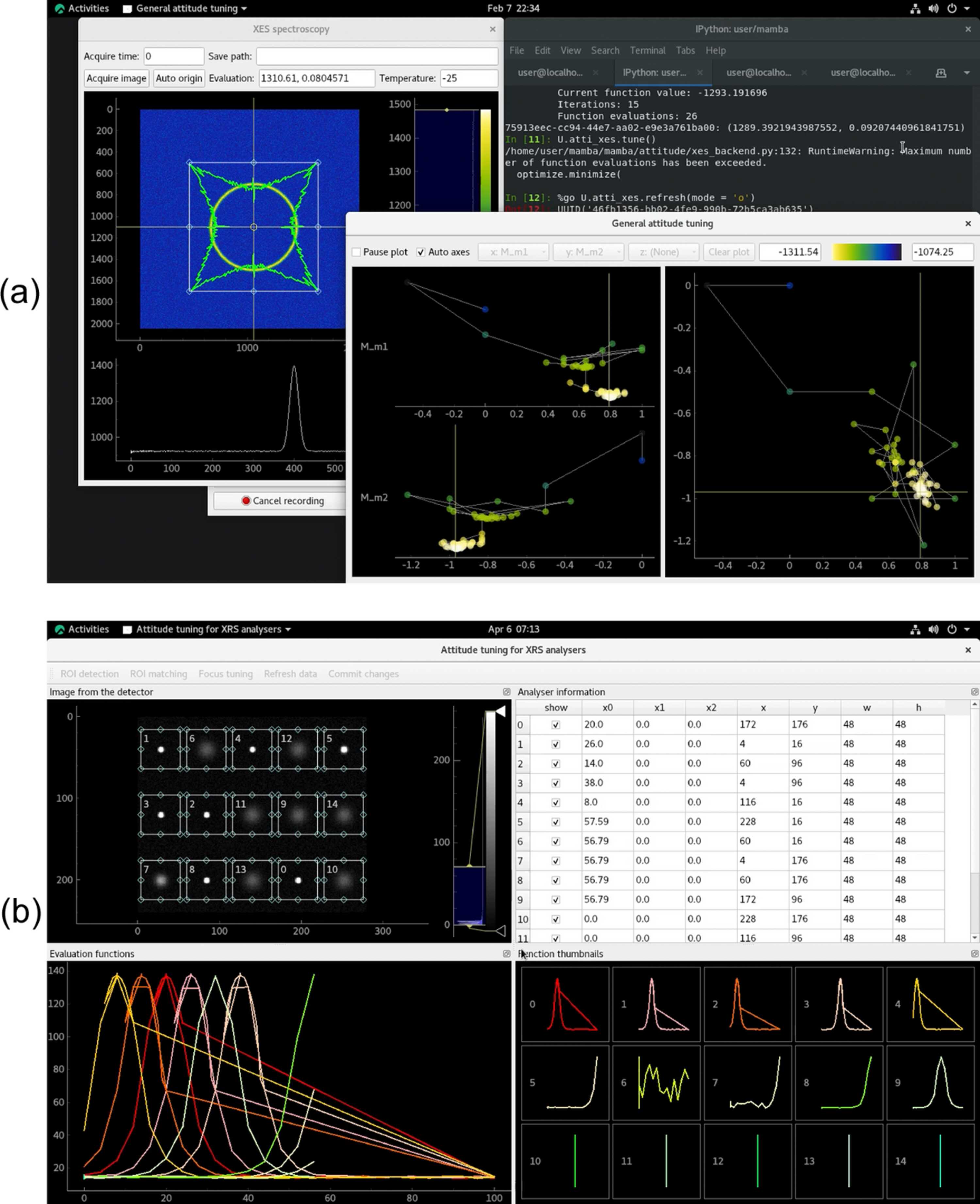

Figure 7
Our (a) XES and (b) XRS attitude-tuning programs running with virtual beamlines. In comparison with its counterpart in Fig. 4, the window in panel (a) on the left is extended with widgets to set the `counting' parameters for regular users, and an `Auto origin' button for automated fine tuning of the origin. In comparison with its counterpart in Fig. 3, the window in panel (a) at the bottom right is extended with widgets that set whether to pause plotting, as well as whether to select automatically which axes and objective parameter to visualize. When the former is enabled, the added `Clear plot' button can be used. When the latter is disabled, the attitude parameters for the 2D projection in the right-hand pane can be selected from the x- and y-axis menu, while the objective parameter can be selected from the z-axis menu.
