Modeling of X-ray pulse propagation in beamline systems using a 6D phase space ray-tracing method

Hu, K.; Xing, Z.; Yang, C.; Zhu, Y.; Wu, C.; Xu, Z.; Wang, Q.; Zhang, W.

doi:10.1107/S1600577525004849

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 7

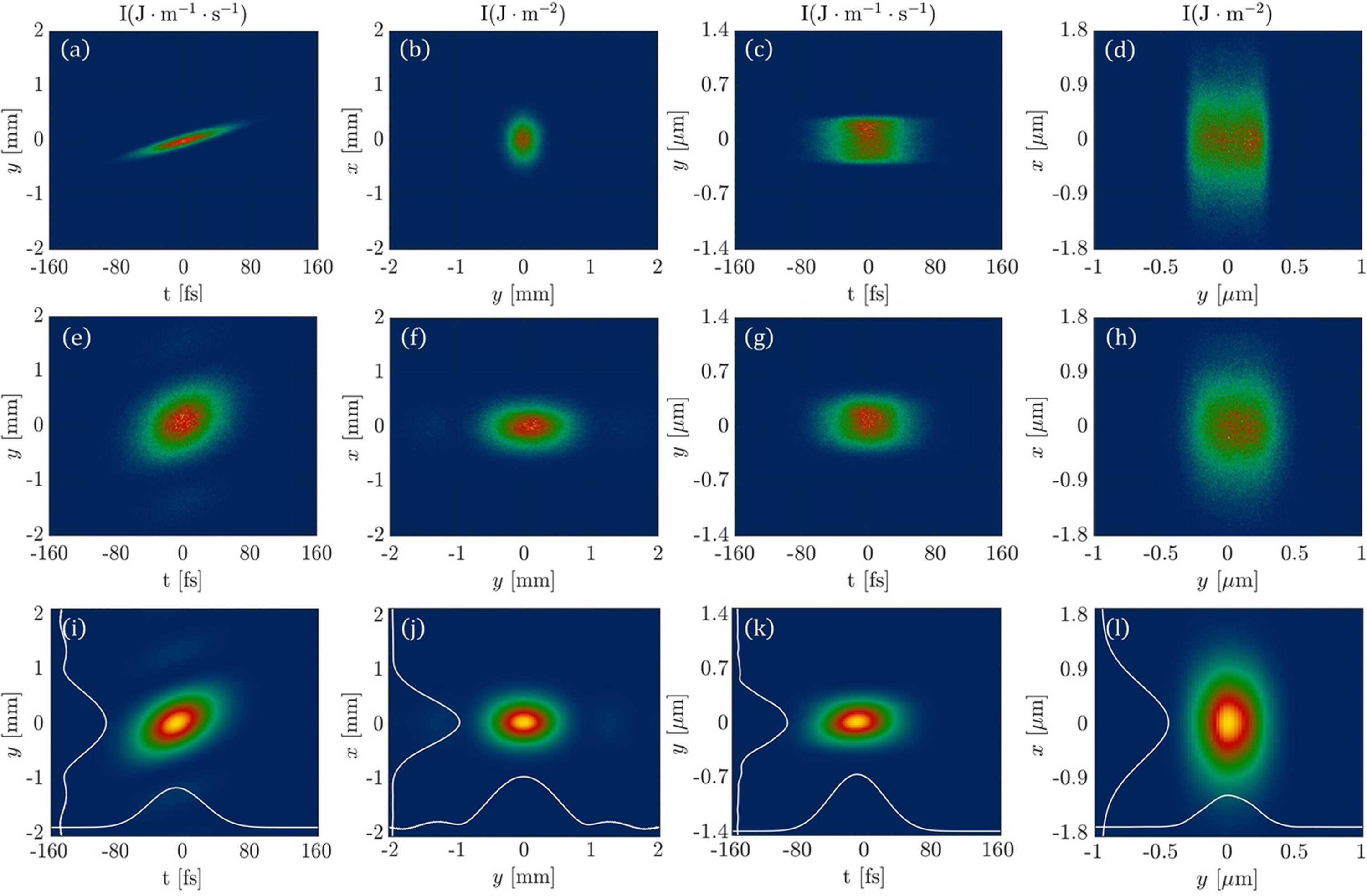

Snapshots of a FEL pulse propagation in the SCI FEL-1 beamline system (monochromator operation mode) at the position of 20 m after the slit and the sample point. (a), (b), (c) and (d) correspond to the results without diffraction correction. (e), (f), (g) and (h) show the results with diffraction correction. (i), (j), (k) and (l) are the results calculated by 3D pulse propagation module of FURION.
