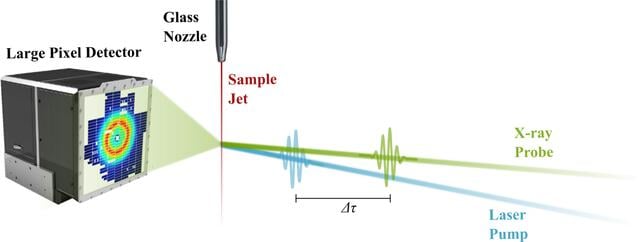

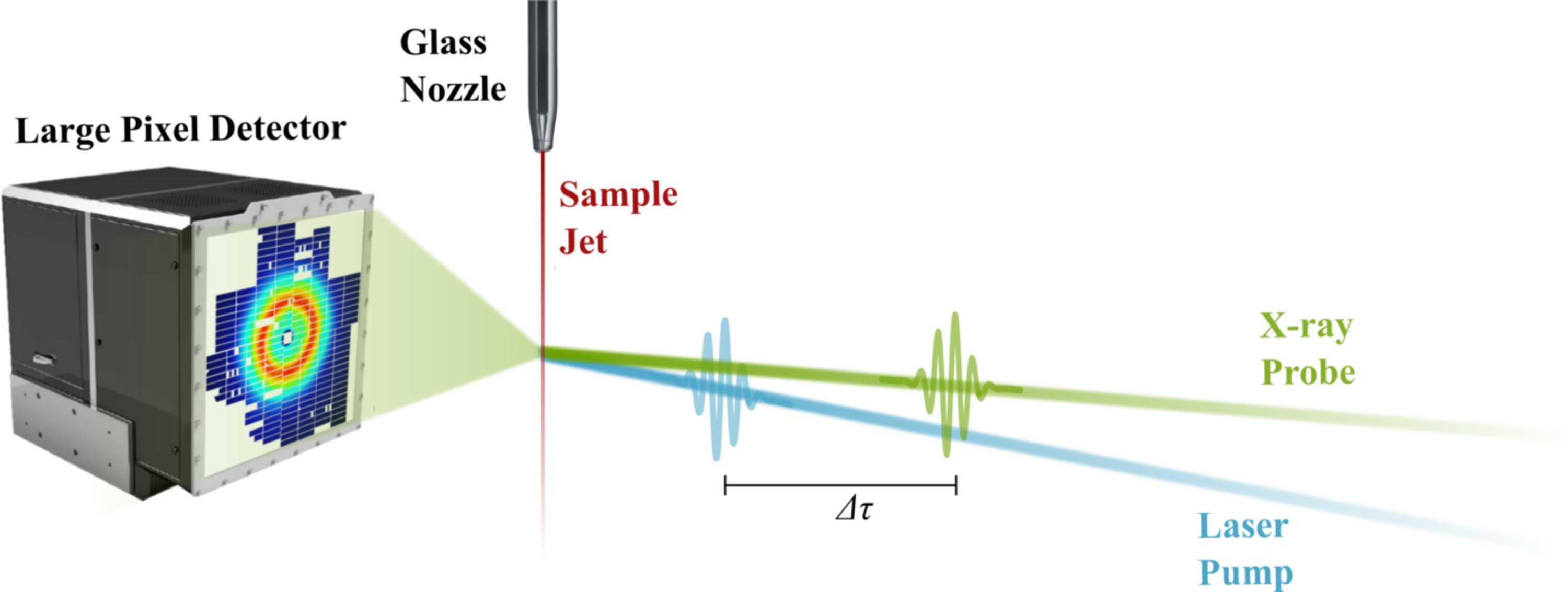

Figure 1
Schematic of the typical setup utilized for TR-XSS experiments at FXE. The sample solution is delivered in a 30–100 µm liquid jet under high pressure. An optical laser pump pulse promotes the photoactive sample to an excited electronic state and the subsequent atomic structural evolution is probed by an X-ray pulse arriving a time delay Δτ after photoexcitation. The scattered X-ray light is detected by the 2D LPD detector.
