Figure 10

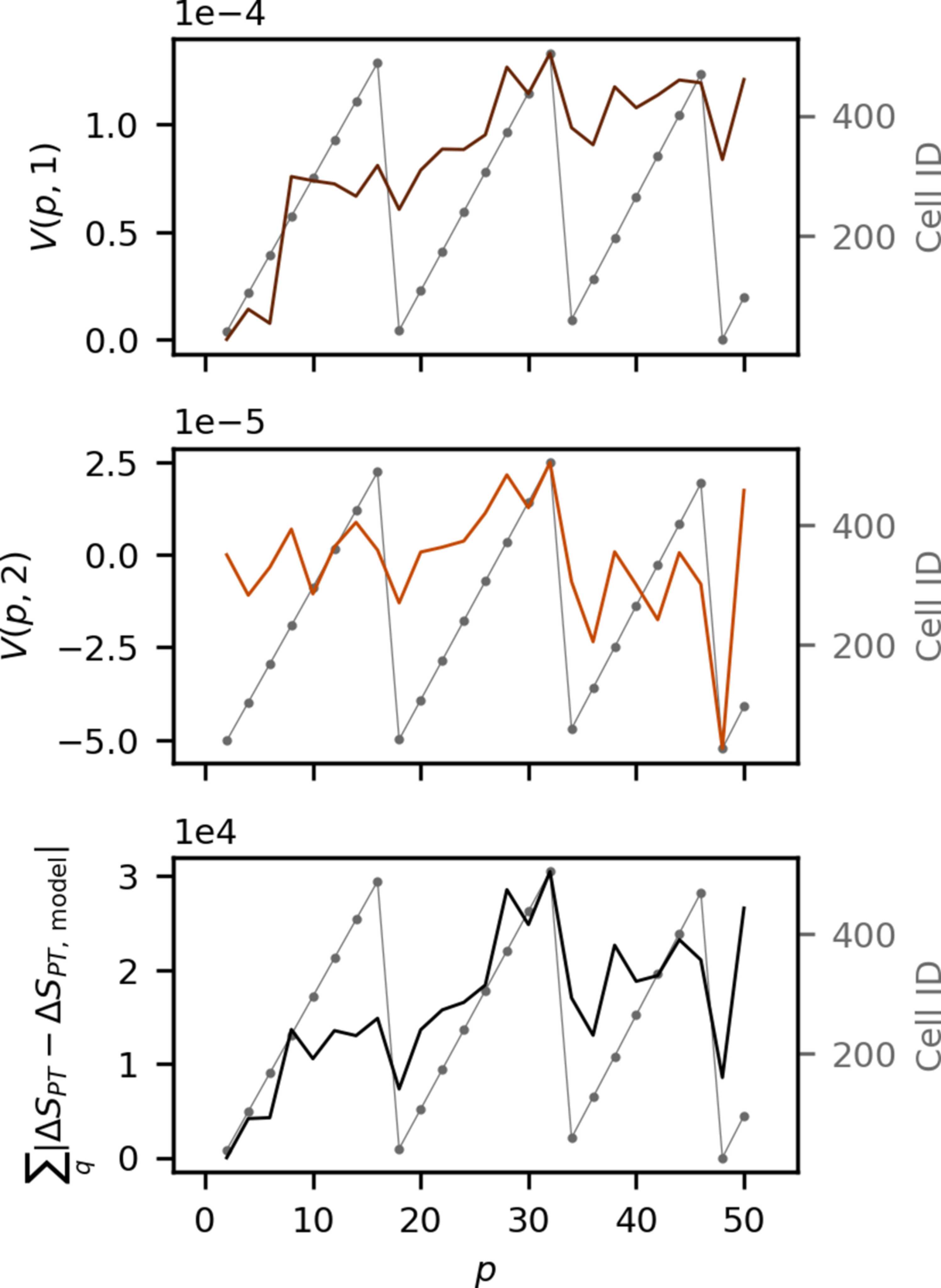

The first (top) and second (middle) right singular vectors of the SVD in Fig. 9[link] as well as the residual (bottom) from the model in Section 3[link] as a function of pulse number p. The dashed gray points are plots of the memory cell ID of the memory cell storing scattering from pulse p. These data were measured during experiment A.
