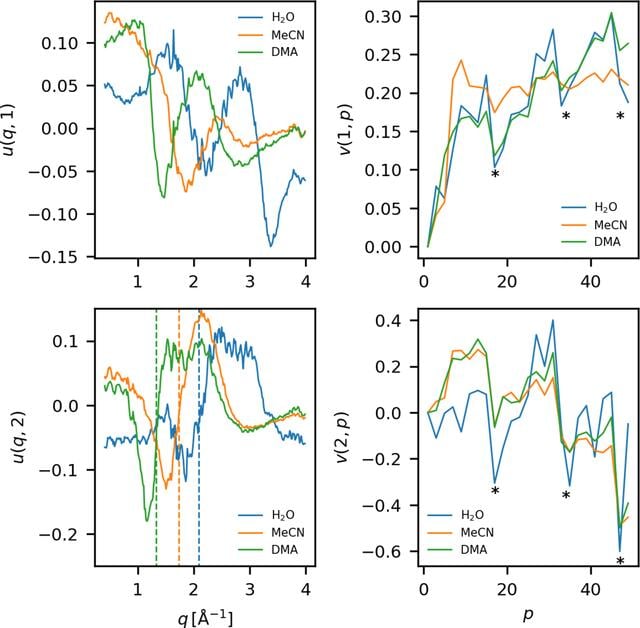

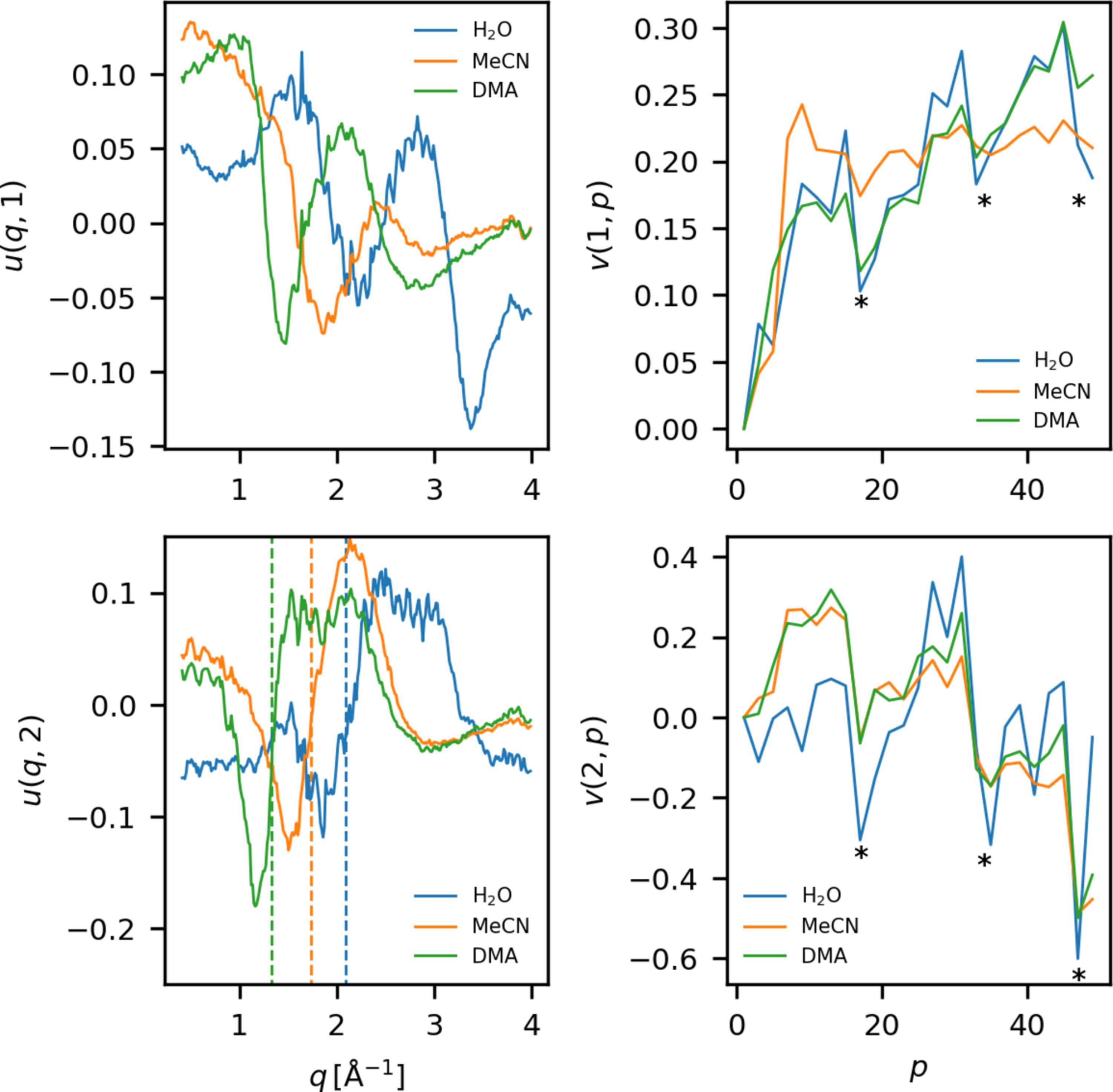

Figure 11
The first two left (left column) and right (right column) singular vectors of the SVD of ΔSPT for three different solvents. The dashed lines in the top right panels mark the maximum of the liquid peak for the corresponding solvent. The asterisks (*) in the right column marks where the cycling of the memory cell starts over. These data sets were measured during experiment A.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 1| January 2026| Pages 18-31
https://doi.org/10.1107/S1600577525009737
