Figure 3

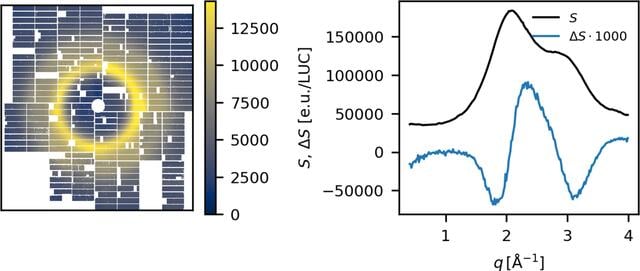

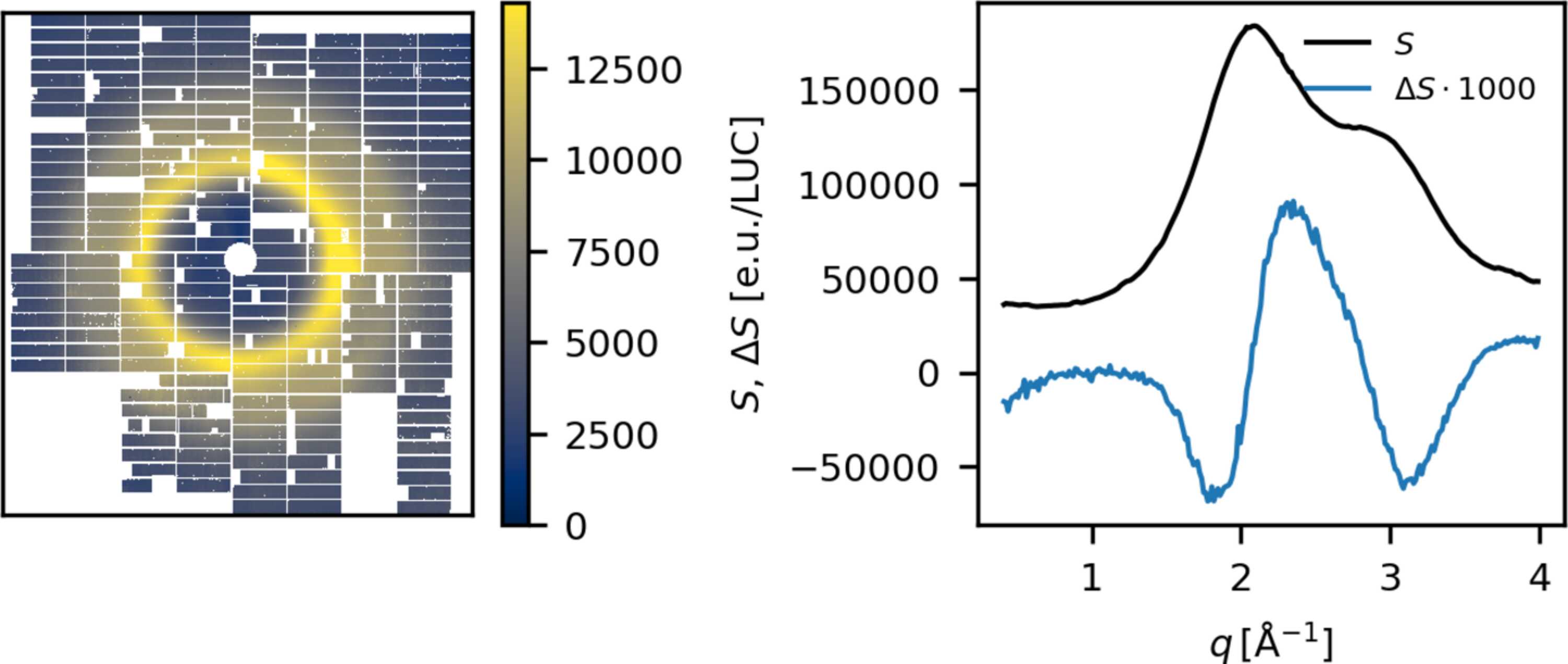

Left: an example of a detector image showing the scattering pattern measured during experiment A, where a mask and solid angle and polarization correction have been applied. Right: an example of the azimuthally integrated scattering signal S and difference scattering signal ΔS multiplied by a factor of 1000 for clarity, both plotted as a function of momentum transfer q.
