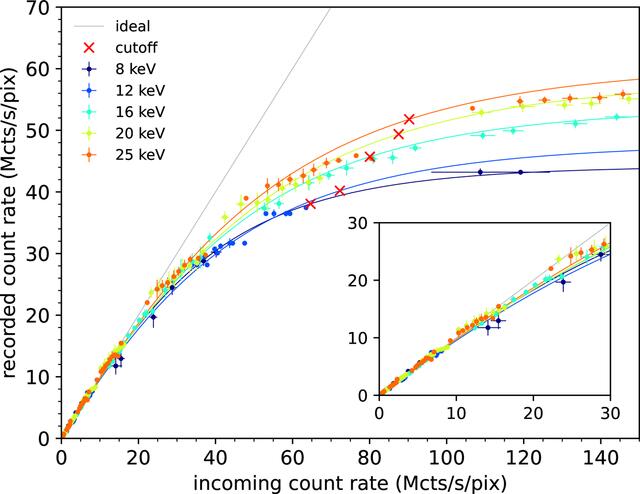

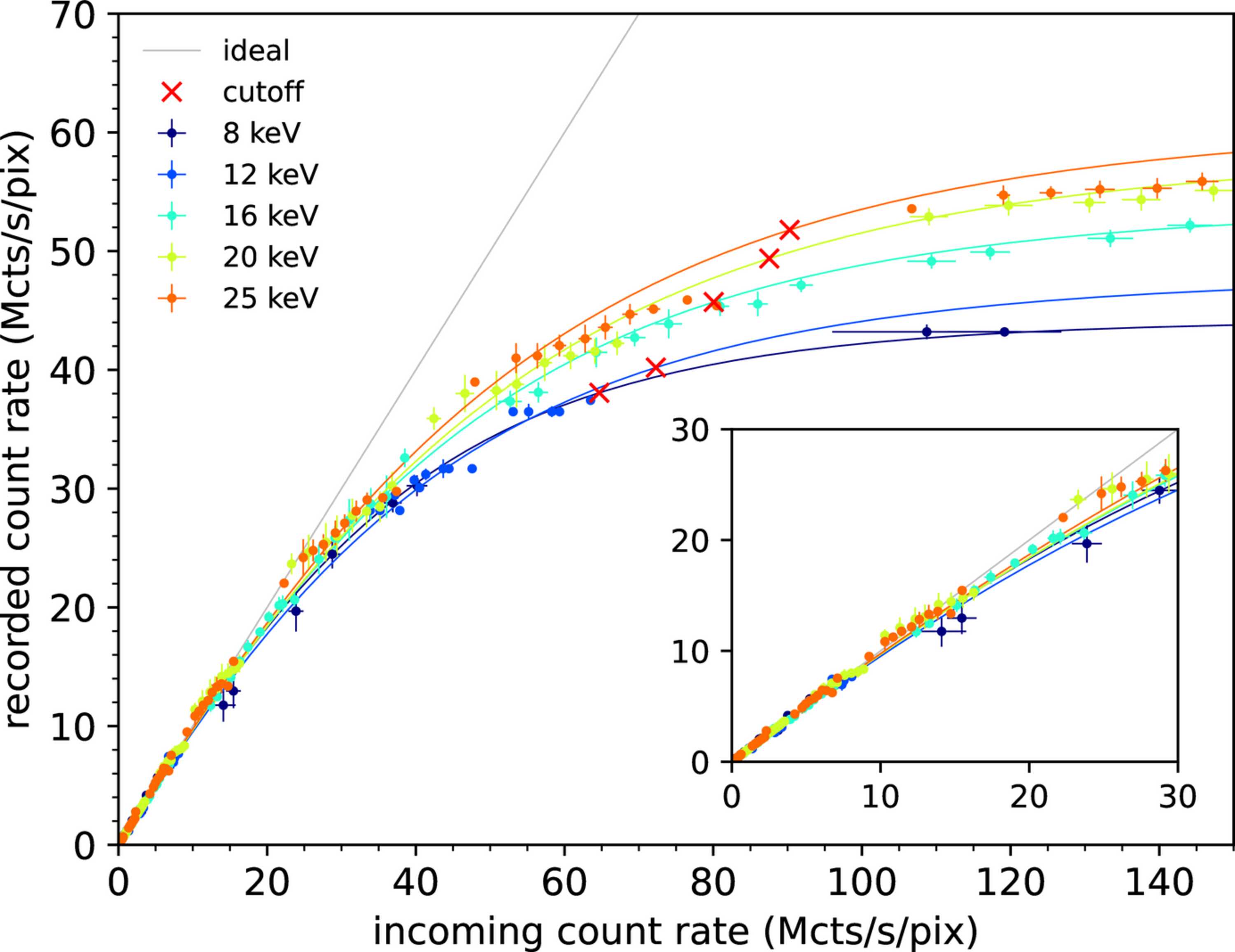

Figure 9
Recorded count rate as a function of the incoming count rate, using the silicon sensor and in non-paralyzable counting mode. Threshold energy is at half the beam energy. Experimental values are depicted with error bars while the fitting with the analytical model is shown as solid lines. The ideal 1:1 count rate curve and the cut-off points are also shown as reference. In the inset, a zoomed view of the linear part is shown up to 30 Mcts s−1 pixel−1.
