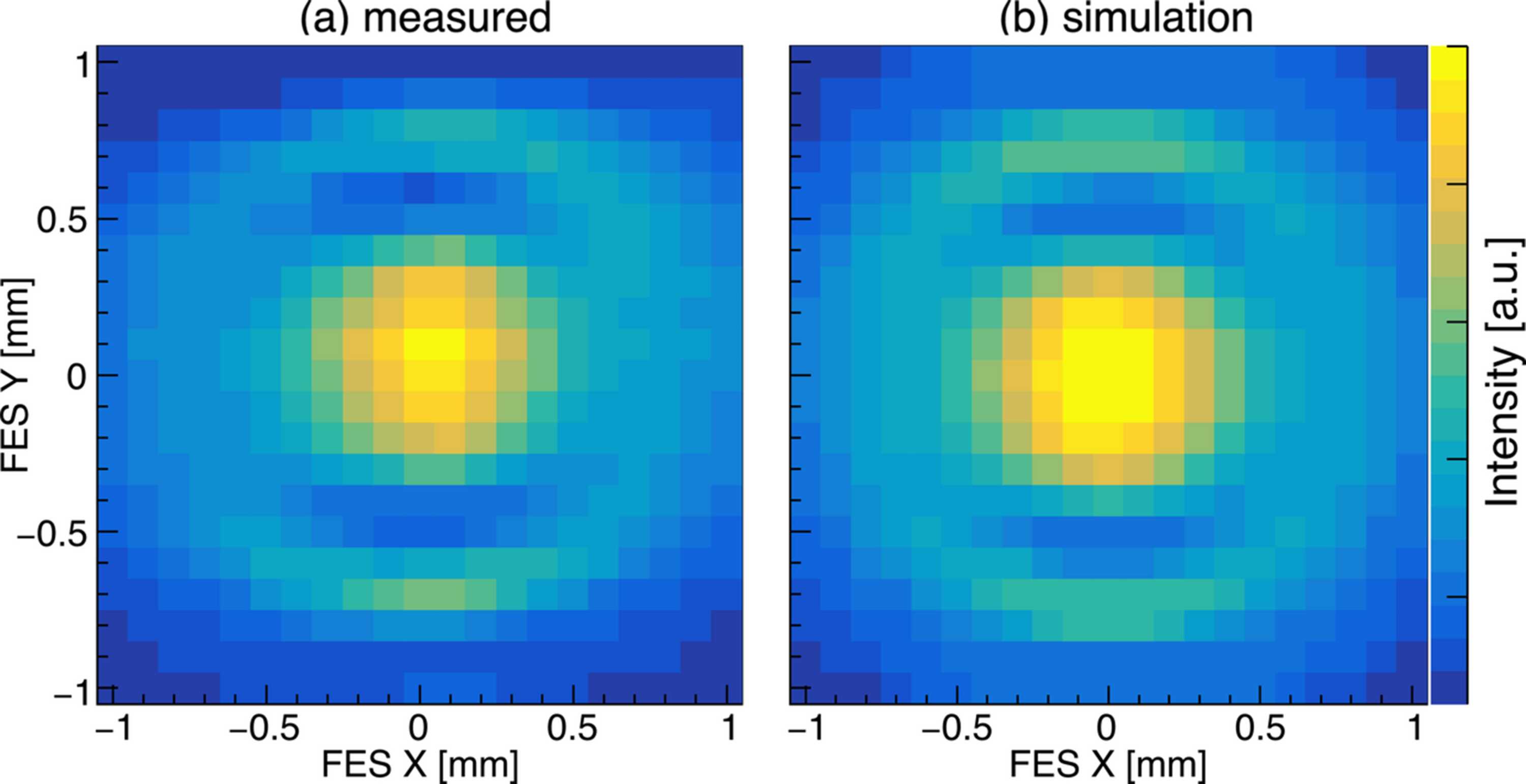

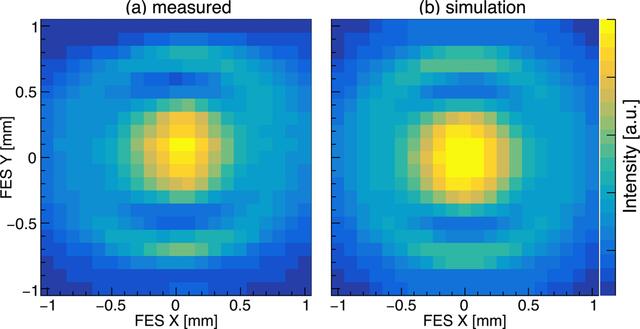

Figure 10
(a) Position dependence of photon flux measured for hν1 = 398.6 eV in LR-mode. (b) Simulated result shown for comparison. The opening size of the FES is 0.1 mm × 0.1 mm. The measurement was performed by sweeping the center position of the FES in 0.1 mm steps.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 1| January 2026| Pages 73-83
https://doi.org/10.1107/S1600577525010641
