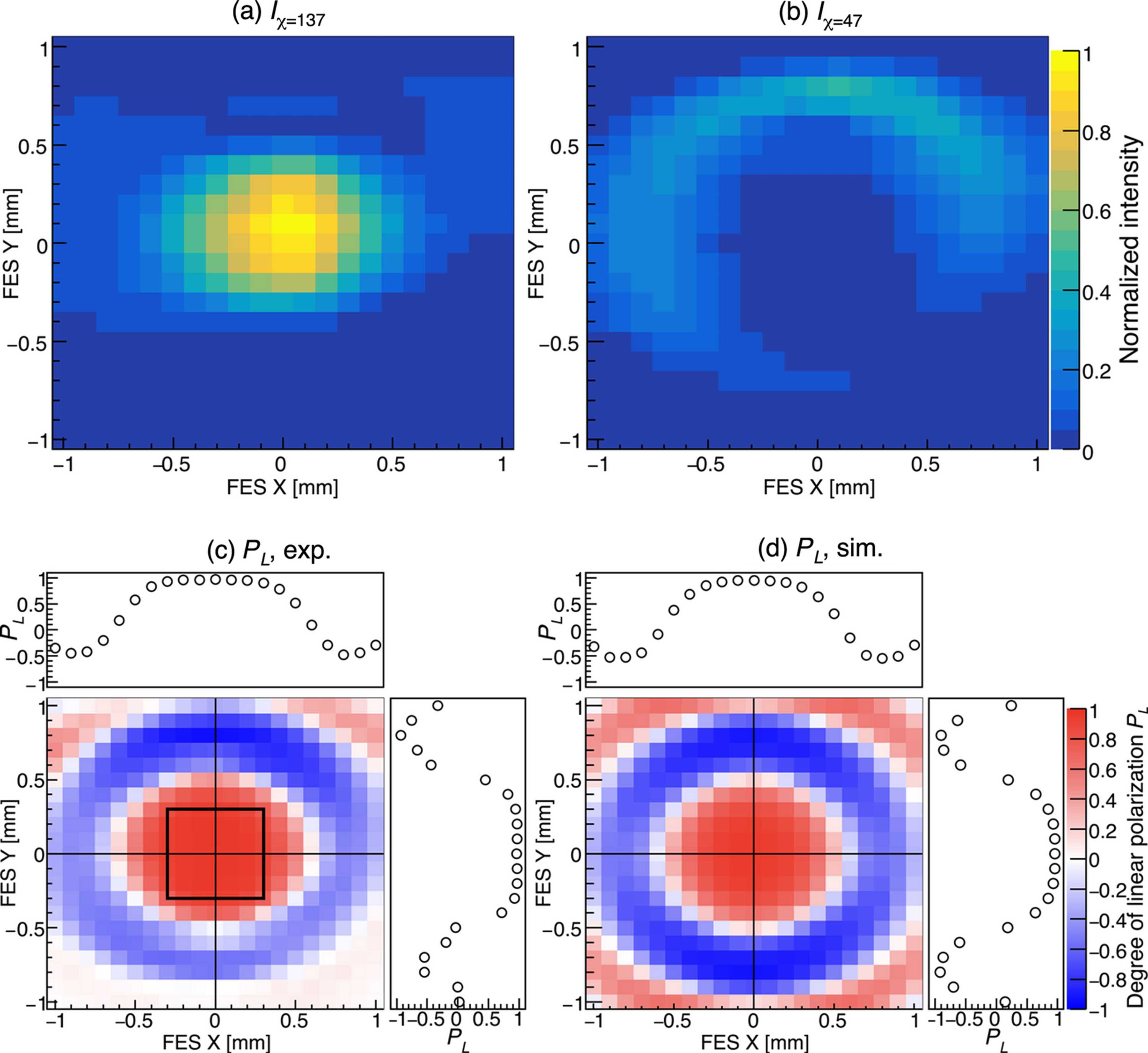

Figure 11
Position dependence of measured flux at (a) χ = 137° and (b) χ = 47° for hν1 = 398.6 eV in LR-mode. The Sc/Cr multilayer was used for the analyzer. The opening and sweep step of the FES are the same as Fig. 10[link]. (c) Degree of linear polarization PL obtained from (a) and (b). The top and right graphs show the position dependence of PL along Y = 0 and X = 0 axes drawn by the solid lines in the contour map, respectively. The open square shows the FES aperture of 0.6 mm × 0.6 mm. (d) Simulated PL.
