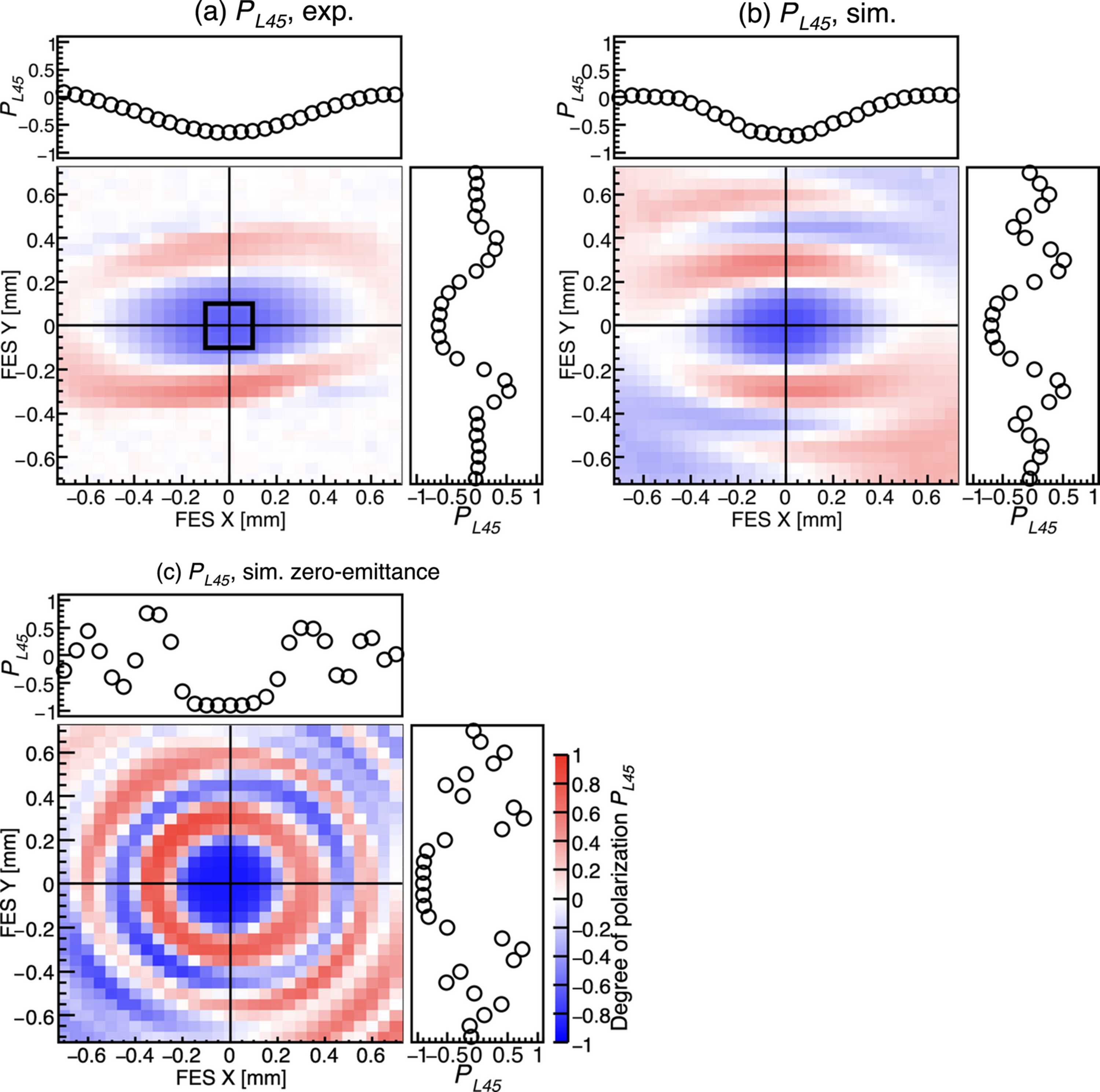

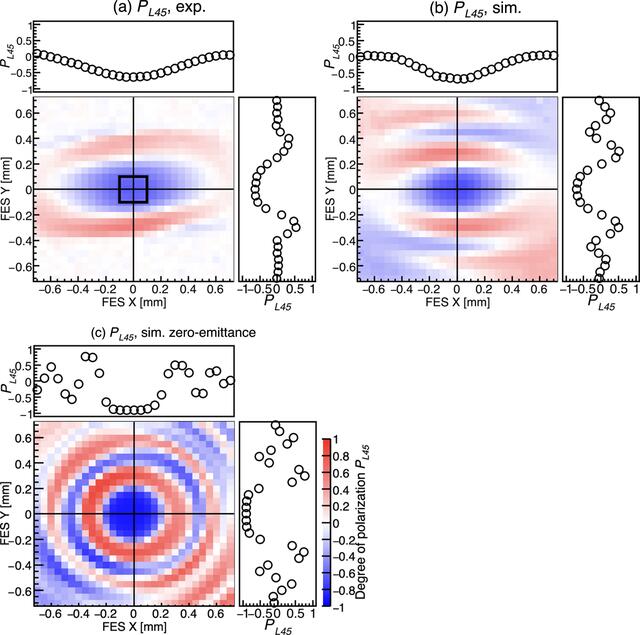

Figure 12
Position dependence of the degree of linear polarization at 45° PL45 for hν3 = 2975 eV in VH-mode. Aperture size of the FES is 0.1 mm × 0.1 mm. Sweep step of the scan is 0.05 mm. The top and right graphs of the contour maps show the position dependence of PL45 along Y = 0 and X = 0 axes drawn by the solid lines. (a) Experimental PL45. The open square corresponds to the FES aperture of 0.2 mm × 0.2 mm. (b) Simulated PL45. (c) Simulated PL45 under the assumption of the zero electron beam emittance.
