Arbitrary polarization control with a segmented APPLE-II undulator

Inaba, K.; Ohtsubo, Y.; Agui, A.; Kimura, H.; Sakuraba, K.; Horiba, K.; Kitamura, M.; Obara, S.; Nakatani, T.; Takeuchi, T.; Hosaka, Y.; Takahasi, M.

doi:10.1107/S1600577525010641

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 5

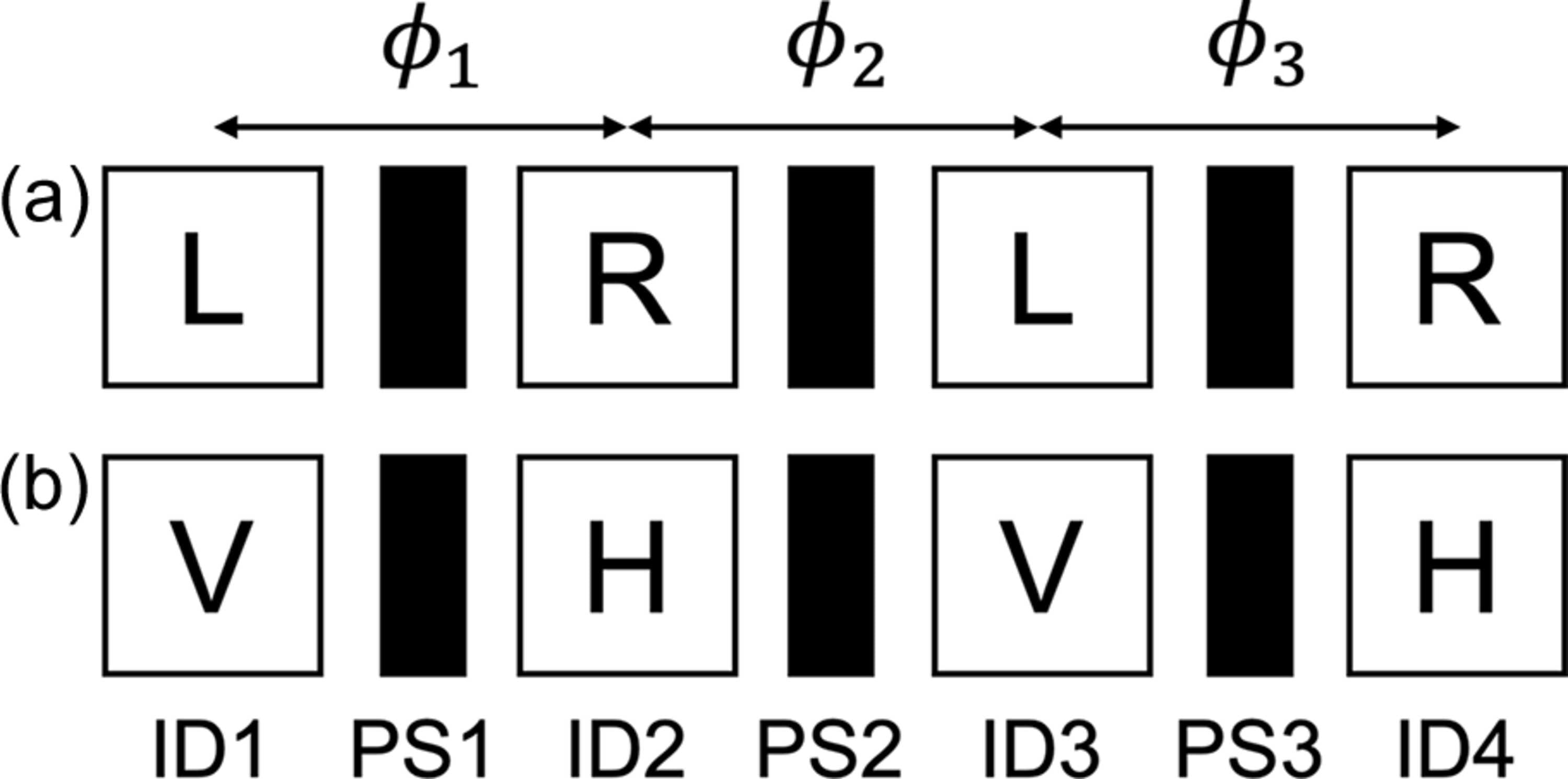

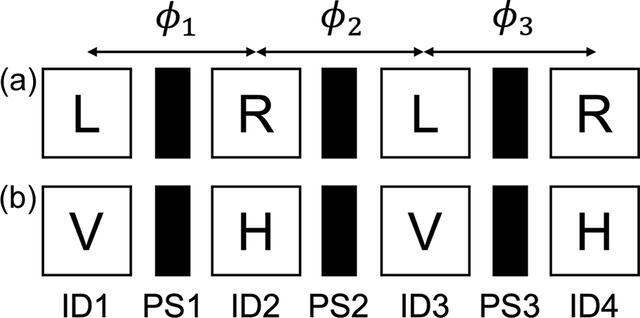

Schematic of a typical configuration of the segmented undulator. Three phase shifters (PS1, PS2 and PS3) are installed in between four APPLE-II segments (ID1, ID2, ID3 and ID4). Each phase shifter controls relative phase (ϕ₁, ϕ₂ and ϕ₃) of adjacent segments. (a) LCP and RCP modes are alternately aligned (LR-mode). (b) VLP and HLP modes are alternately aligned (VH-mode).
