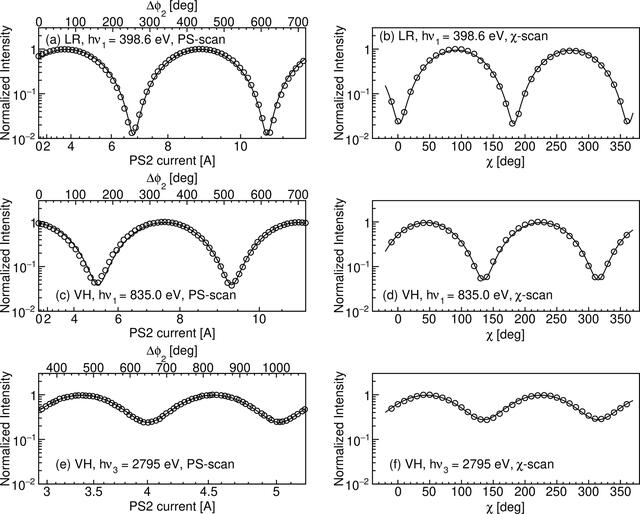

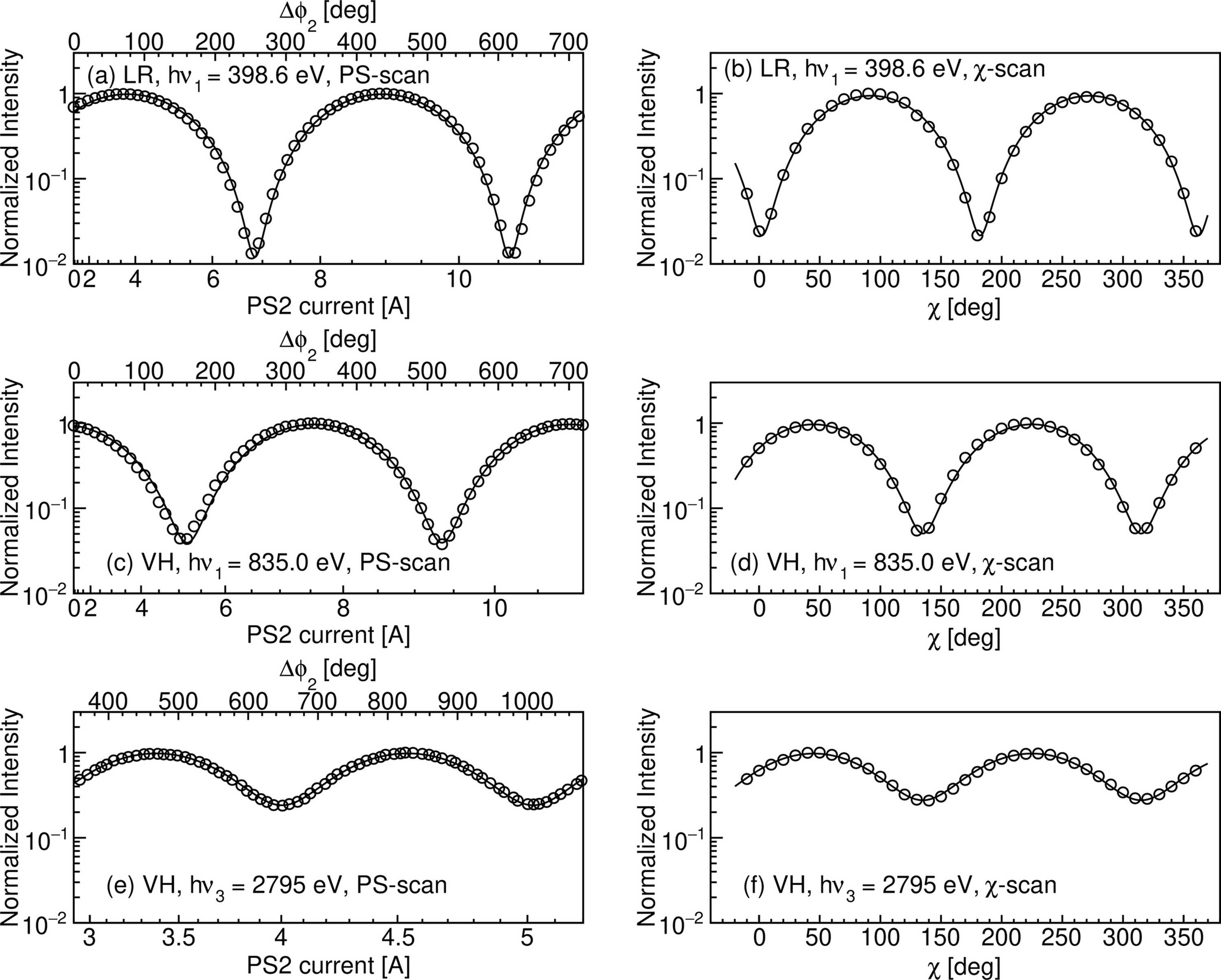

Figure 9
(a), (c) and (e) Normalized photon intensities obtained by varying the phase shift Δϕ2. The bottom and top horizontal axes show the PS2 current and corresponding Δϕ2, respectively. Δϕ2 was obtained using the fitting result as described in Section 3.1[link]. (b), (d) and (f) The fluxes measured by rotating the azimuthal angle χ of the analyzer. The opening size of the FES is 0.1 mm × 0.1 mm. The open circles show the measured data, while the solid lines show the fit results.
