Figure 7

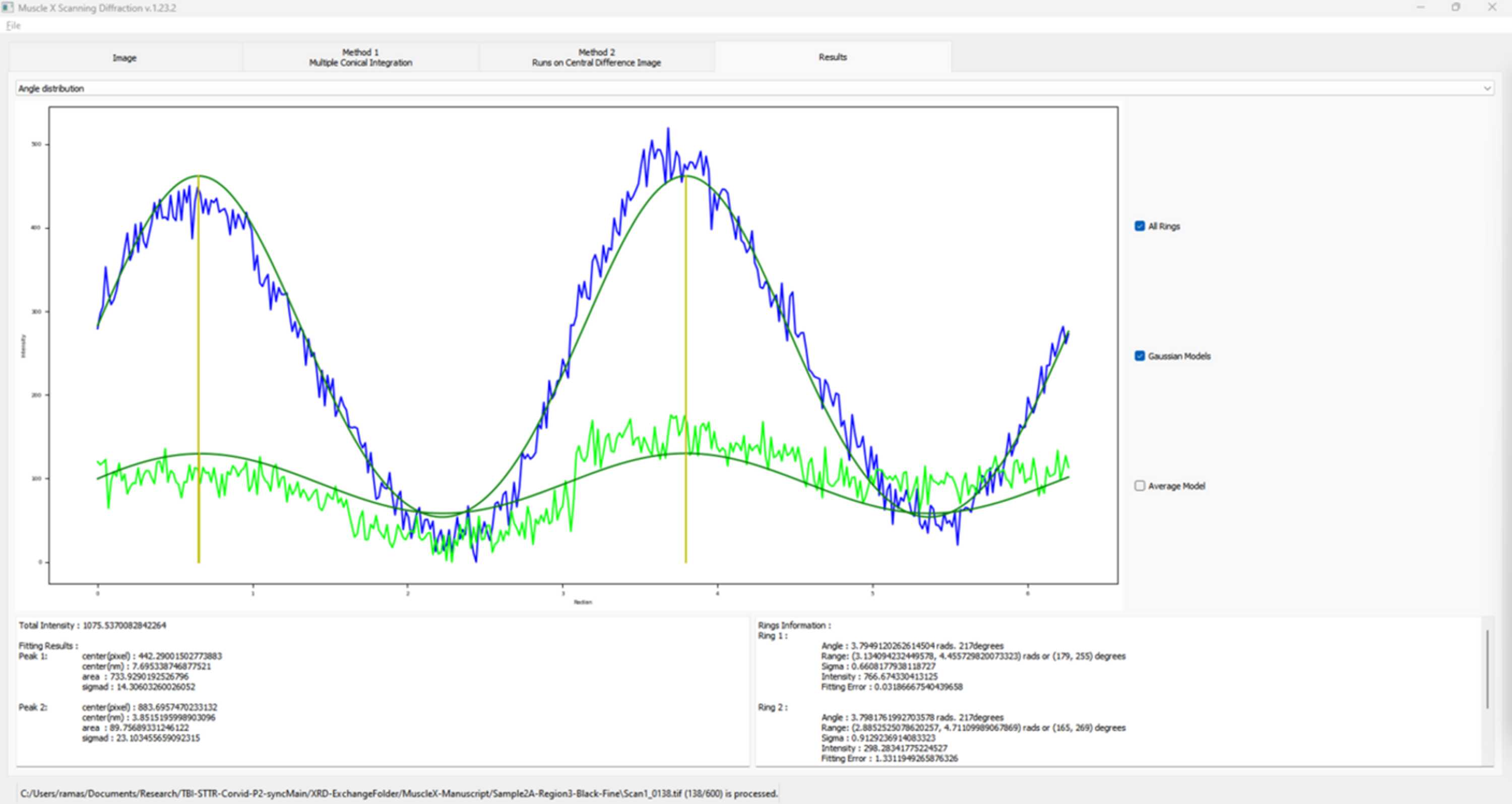

Radial integration profile and Gaussian peak fits from the raw data. The distance between peaks is ∼180° or Π radians as diffraction is centrosymmetric. The x-axis on this plot is the angle (radians) of the radial slice, from the origin, along which the intensities are summed, and the y-axis shows the summed intensity at that angle. All rings detected in the image are displayed here. The color of the display is coordinated with the ring colors in the previous integration mode.
