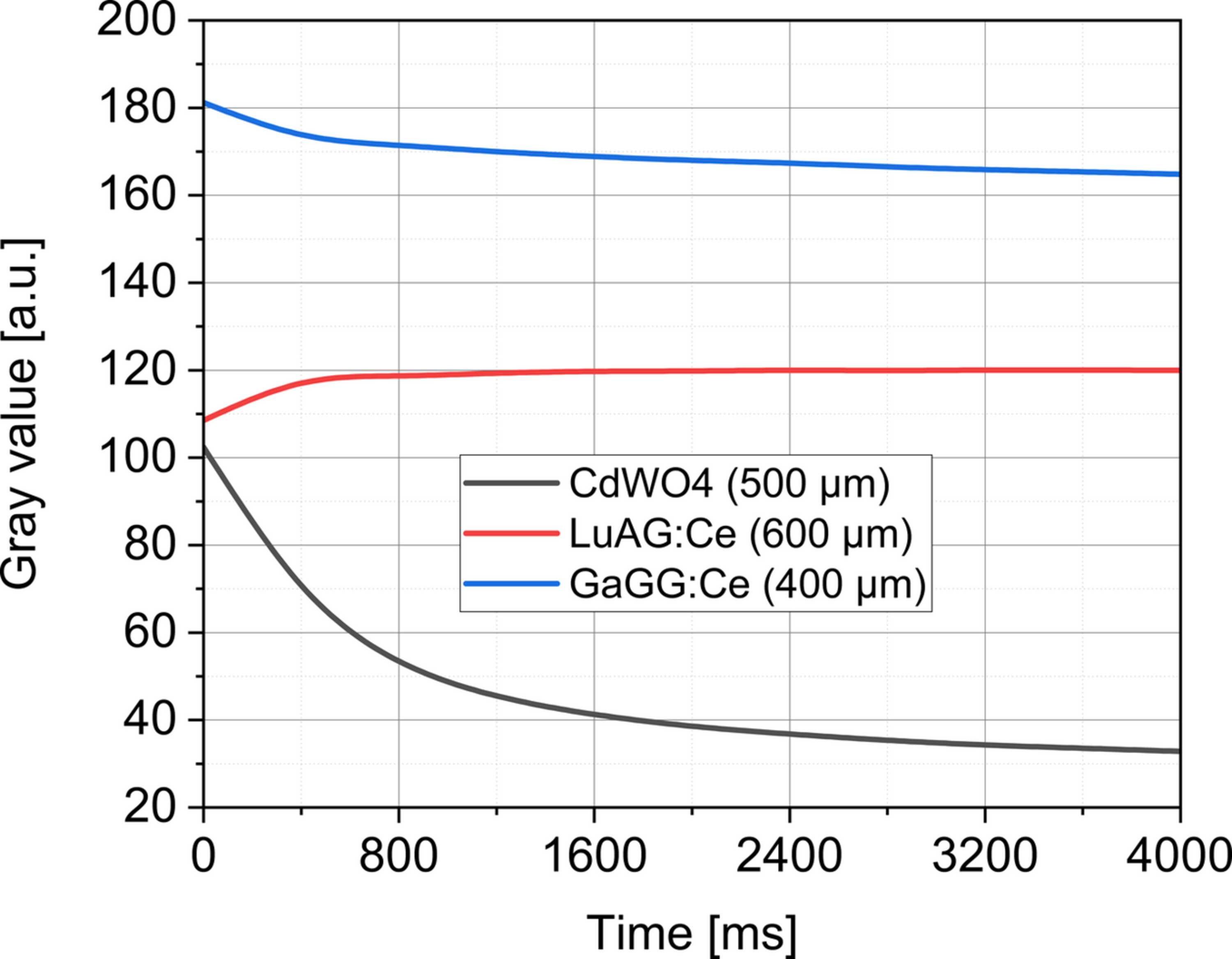

Figure 5
Temporal behavior of the light output of selected scintillators suitable for high-speed imaging, measured under constant white synchrotron X-ray flux with 200 µm Ta and 10 mm Al filters. Data points represent the average gray level recorded every 400 ms over a 2 mm × 1 mm FoV for CdWO4 (500 µm), LuAG:Ce (600 µm) and GaGG:Ce (400 µm) scintillators. All scintillators were vented according to our design and coupled to a diamond plate.
