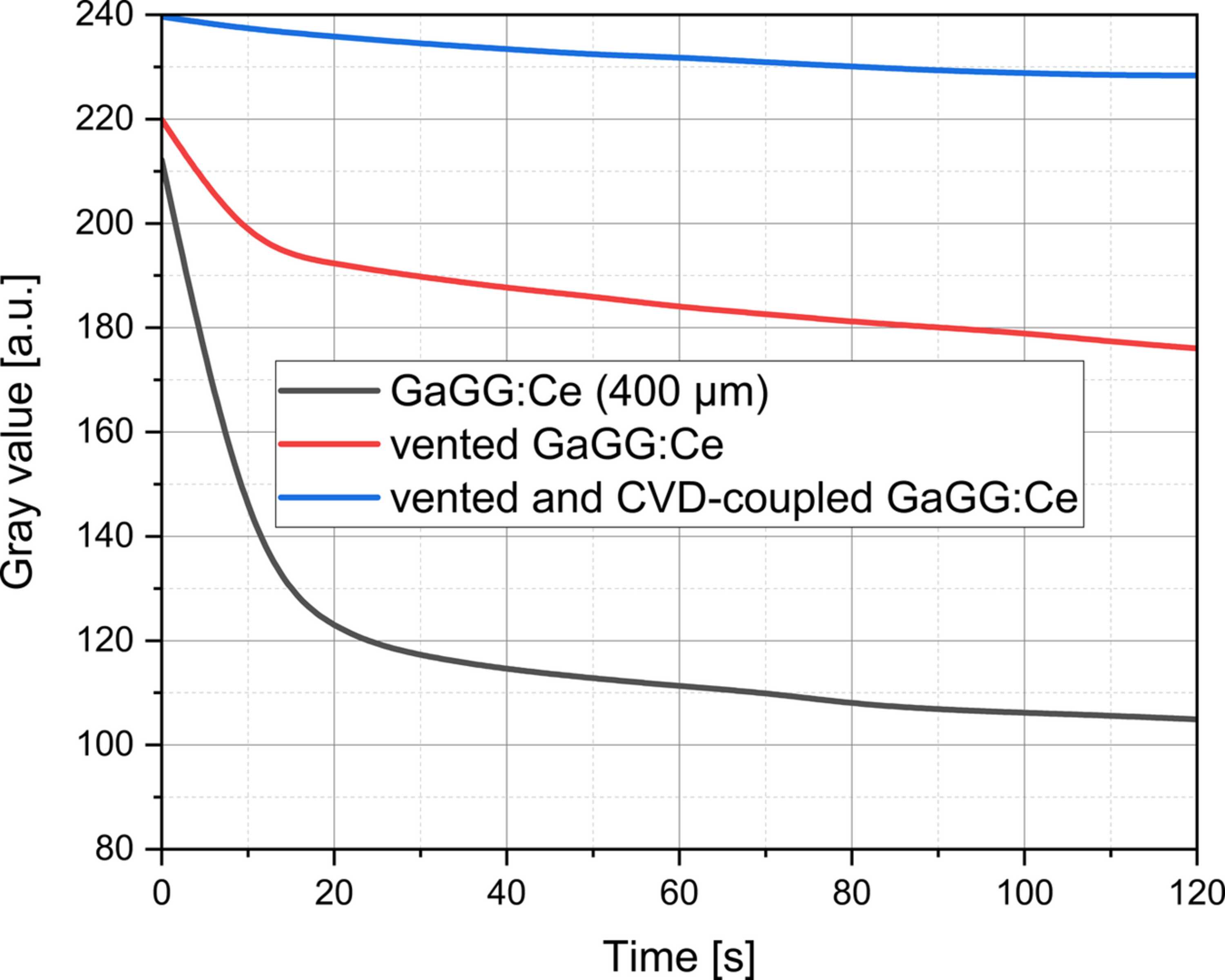

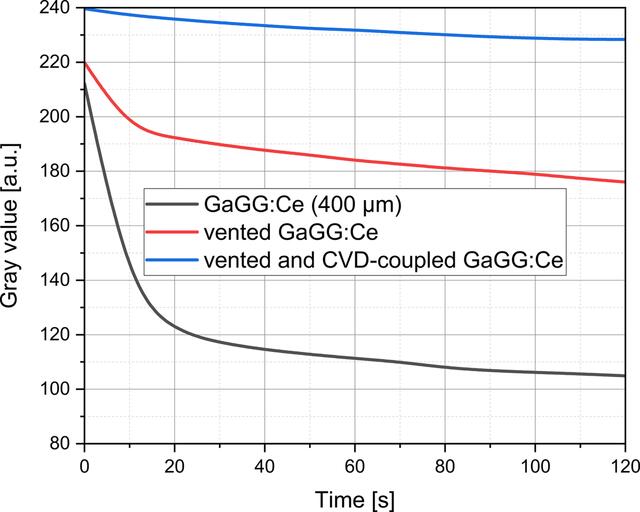

Figure 7
Benefit of additional coupling of the scintillator to a diamond plate to reduce heat stress in a scintillator exposed to the intense white X-ray beam. The plots show the scintillator light output in the form of grayscale values measured at 10 s intervals in the same 280 × 240 pixel segment of captured flat-field images. Measurements were performed without cooling, with active convective cooling and with active convective cooling combined with coupling to a 100 µm diamond plate.
