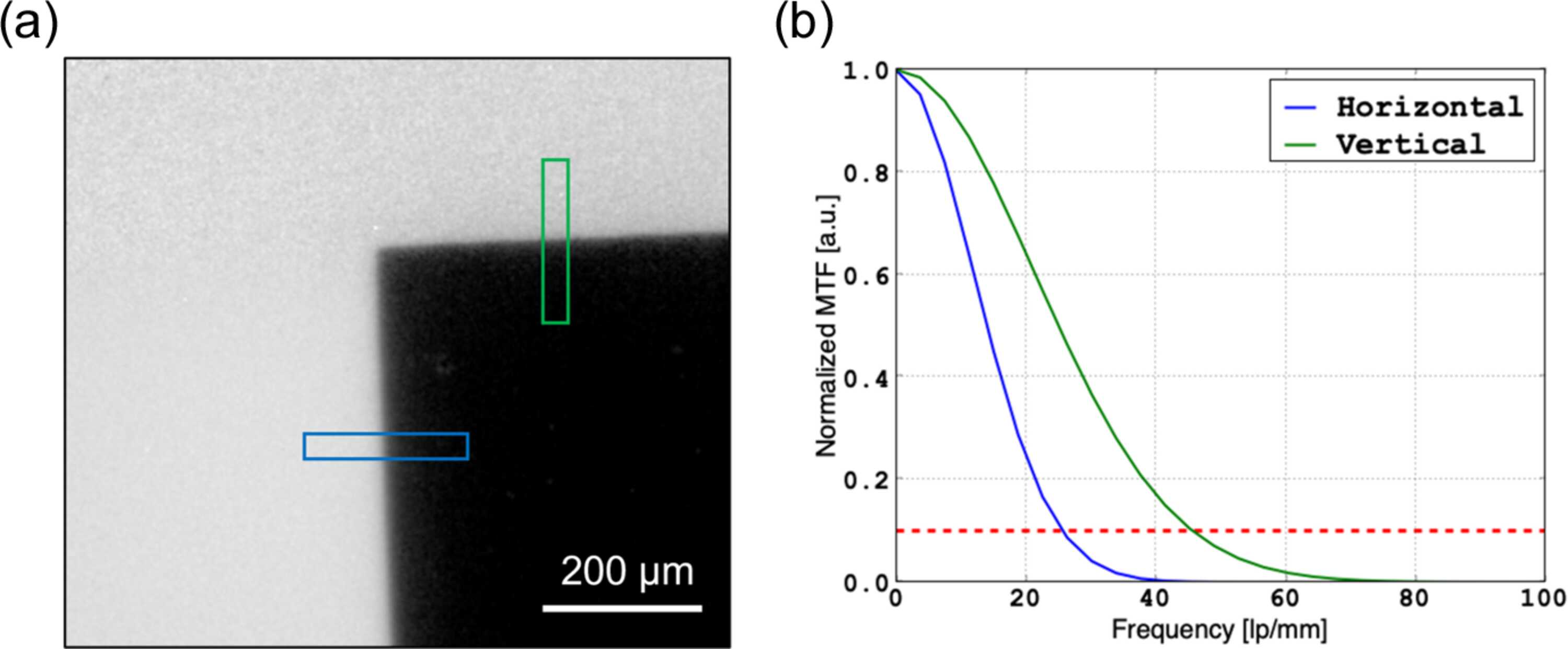

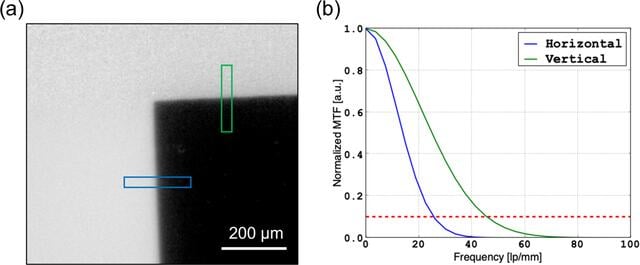

Figure 8
(a) Flat-field corrected X-ray image of a 5 mm thick tungsten plate mounted in proximity to the scintillator frame. The areas marked in blue and green at the edges of the tungsten plate are used to evaluate the resolution using the modulation transfer function. (b) Modulation transfer function for the horizontal and vertical directions (blue and green curves, respectively).

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 1| January 2026| Pages 181-194
https://doi.org/10.1107/S1600577525010057
