Figure 1

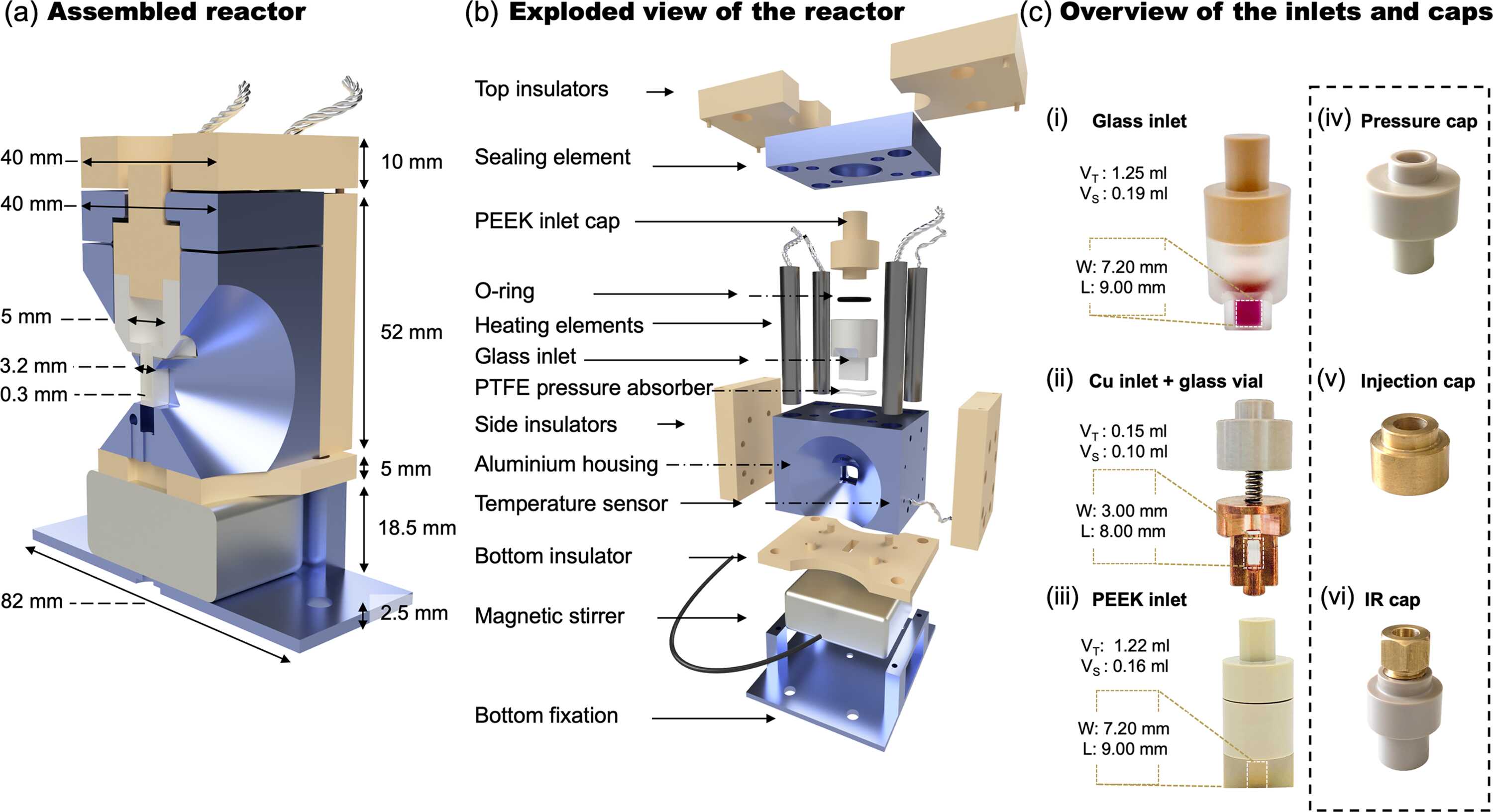

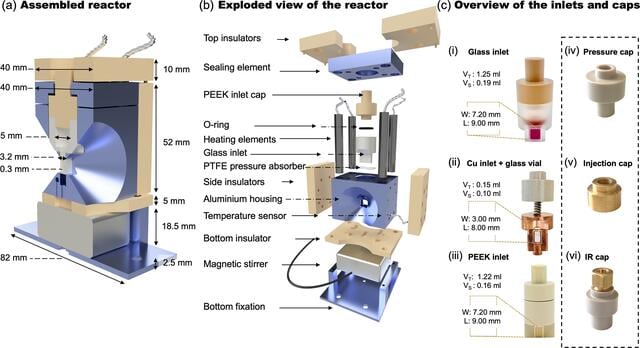

Design of the reactor. (a) Cross-sectional rendering of the assembled reactor. (b) Exploded schematic showing individual components. (c) Photograph of the interchangeable inlet modules for different experimental configurations, VT and VS indicate total volume and scanning area volume, respectively. W and L are the width and length of the scanning area. |
