Figure 6

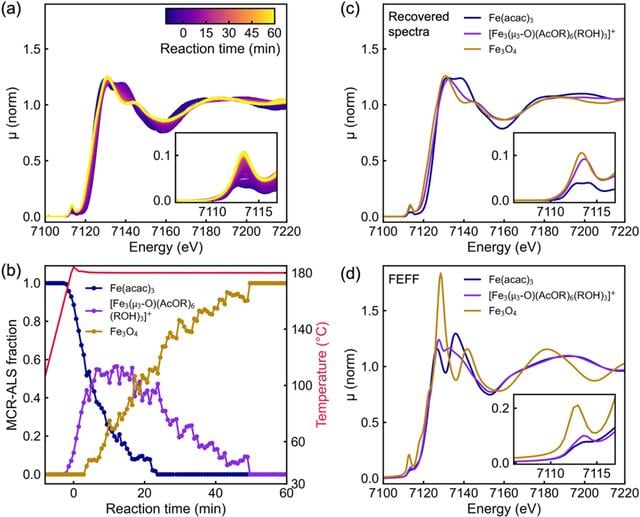

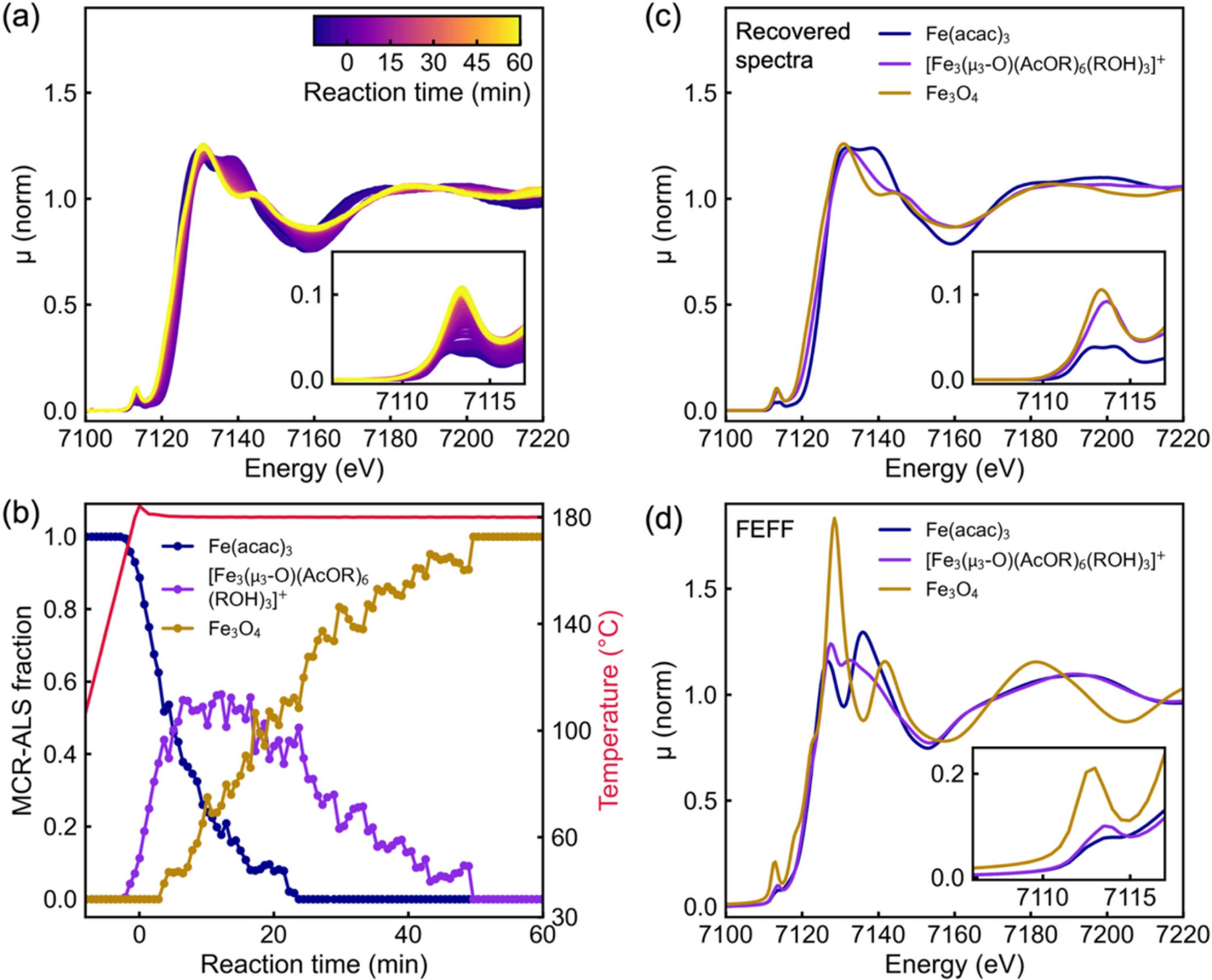

In situ Fe K-edge HERFD-XANES analysis of the reaction to Fe3O4. (a) In situ HERFD-XANES data. (b) Concentration profiles of three distinct Fe species extracted via MCR-ALS. (c) MCR-ALS recovered spectra. (d) FEFF simulations based on structures determined from in situ PDF analysis, confirming the initial species as Fe(acac)3, the intermediate as [Fe3(μ3-O)(AcOR)6(ROH)3]+ and Fe3O4 as the final product.
