Figure 1

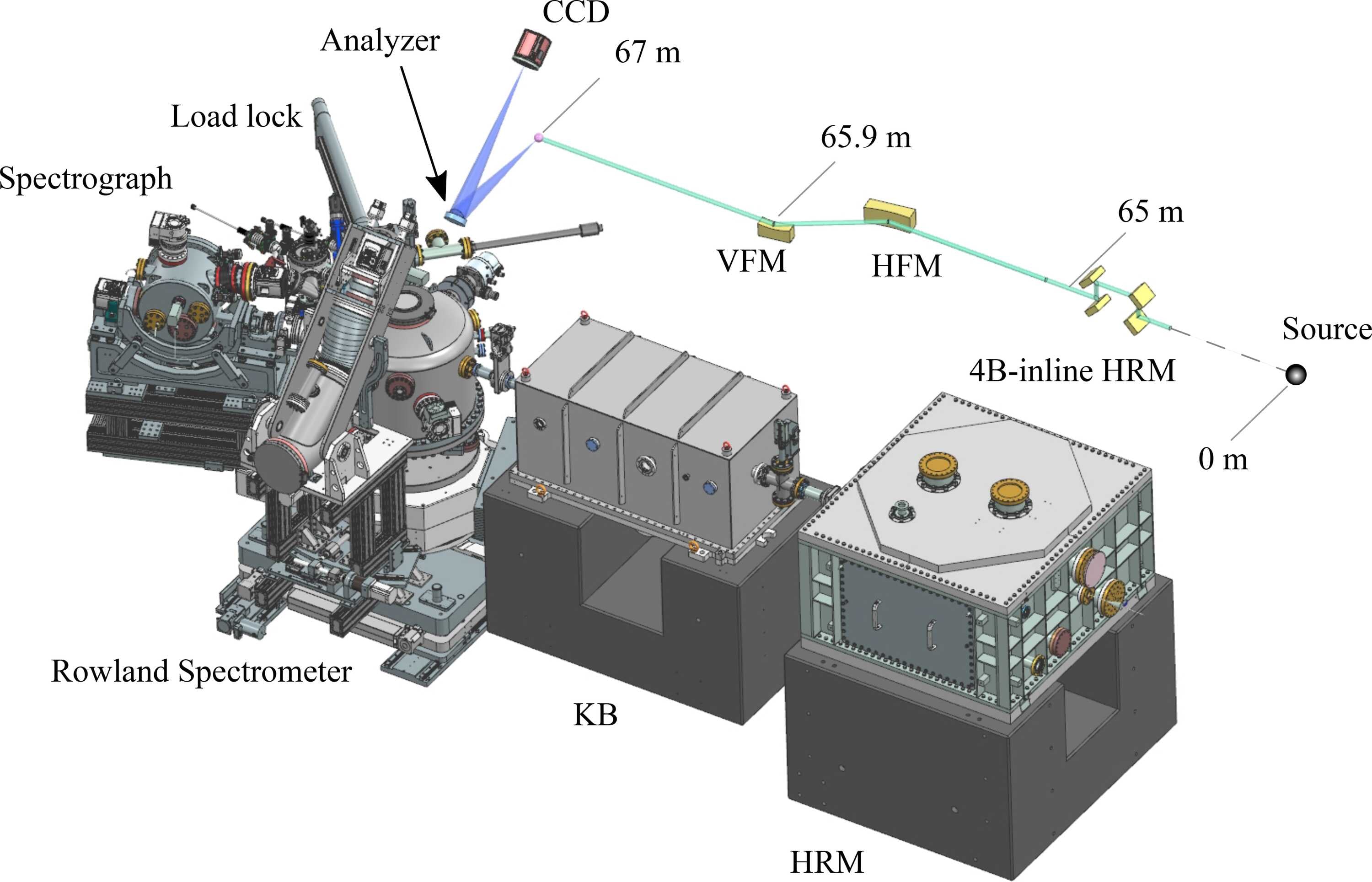

Drawing of the IRIXS instrument showing the position of some of its components from the source. These include a high-resolution monochromator (HRM), a Kirkpatrick–Baez (KB) mirror, a sample chamber and a Rowland spectrometer. In the adjacent layout the beam can be seen propagating from right to left, going through the multiple elements before hitting the sample and being subsequently analyzed by the spectrometer. The drawing also includes our spectrograph spectrometer as well as a load lock.
