Figure 5

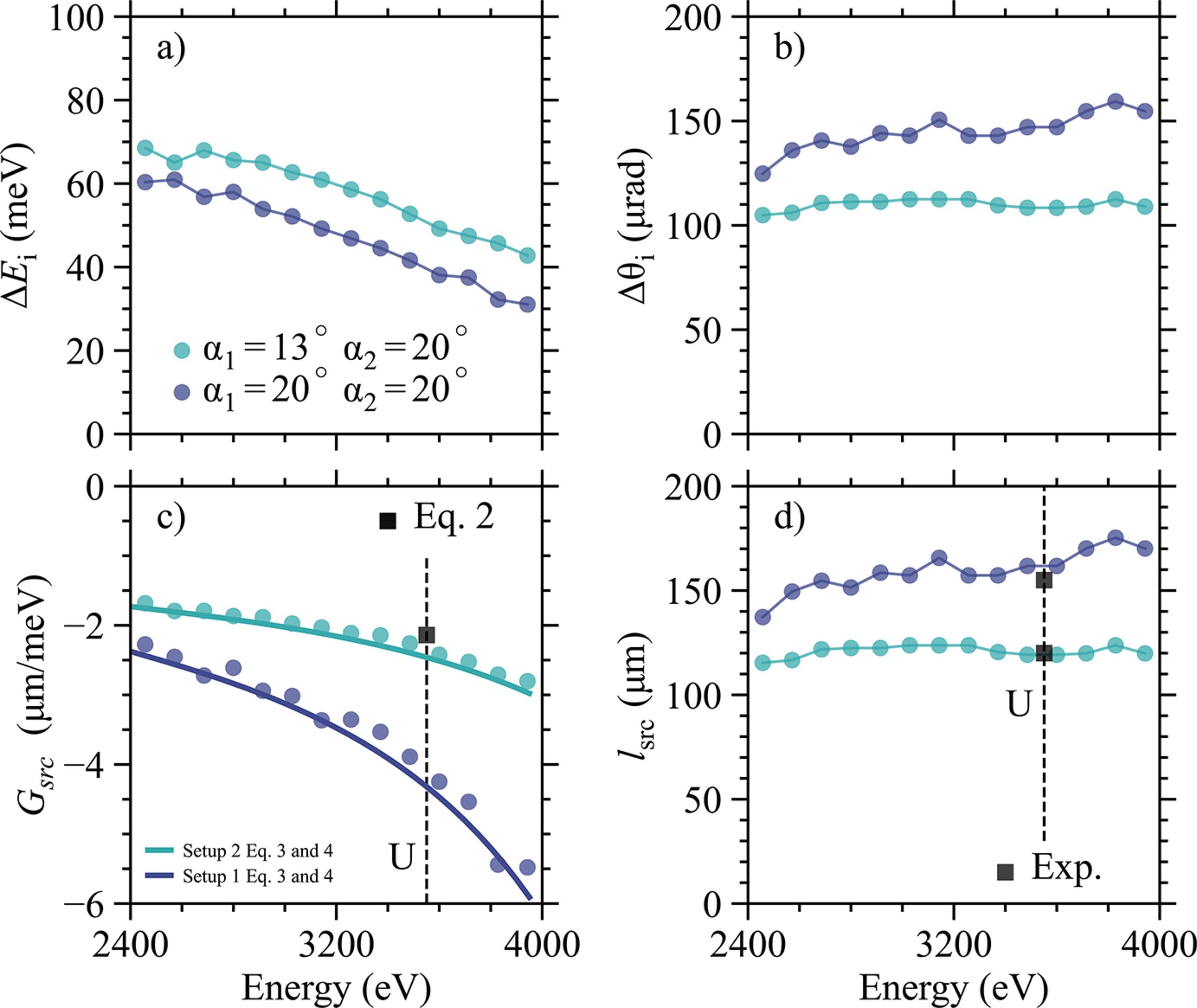

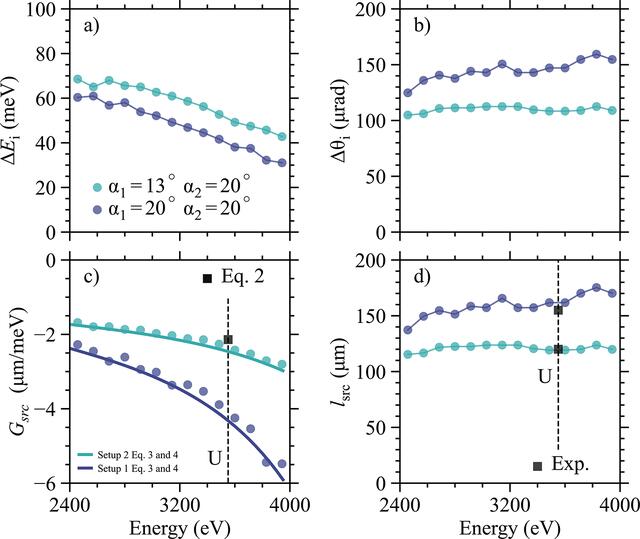

Ray tracing results showing the expected (a) incident bandwidth and (b) divergence from the 4B-inline HRM over the working energy range. Results are shown for two different HRM setups (see text). In (c) and (d) we plot the expected linear dispersion rate and source size when the HRM beam is focused. Thick solid lines in (c) are derived from equation (3)[link]. The square symbol in (c) represents the linear dispersion required from equation (2)[link] while in (d) the experimental values for the vertical focus of the two different HRM setups.
