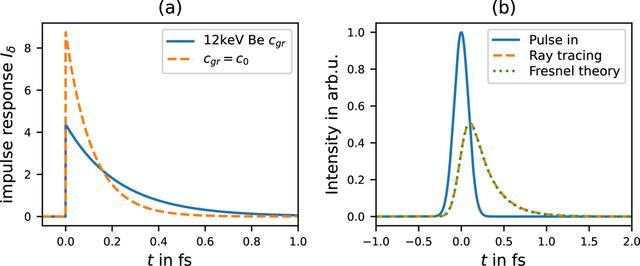

Figure 4
(a) Impulse response function Iδ for a Be lens with f = 3 m, a beam size 755 µm FWHM, and a photon energy of 12 keV. The solid blue line considers the corresponding group velocity inside the lenses material; the dashed orange line neglects the reduced group velocity. (b) Pulse-stretching effect of a 200 as FWHM Gaussian pulse. For the Fresnel theory plot the intensity is spatially integrated. Note that the ray-tracing approach yields a result extremely similar to the one using the Fresnel theory.
