Figure 6

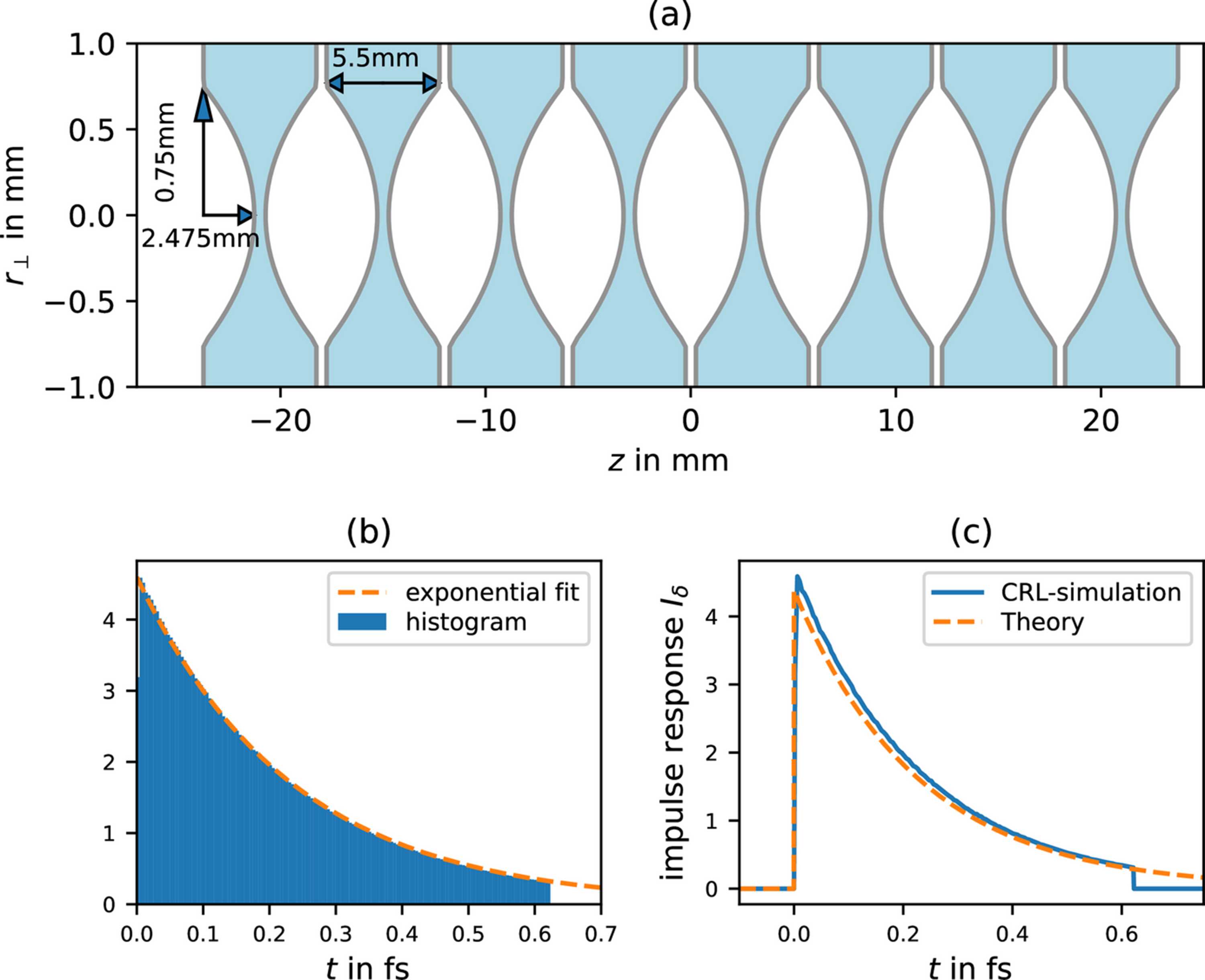

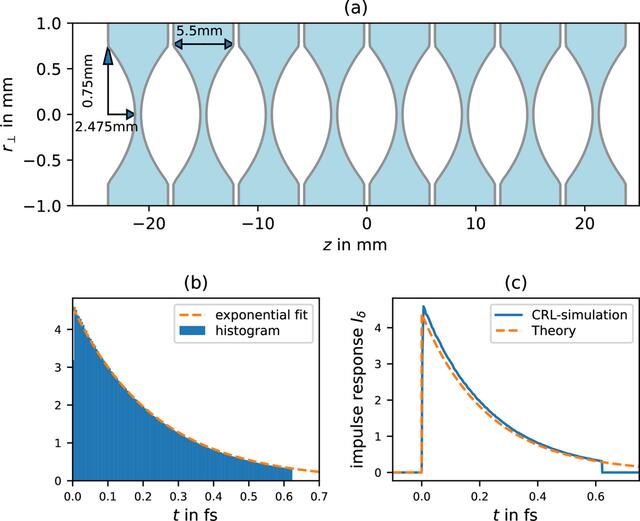

(a) Sketch of the simulated CRL consisting of eight Be X-ray lenses, with f = 3.01 m for 12 keV collimated rays. (b) Intensity-weighted histogram of time delays of the rays at the focus relative to the `fastest' ray. The exponential fit yields [\tilde{F\,}\!_{r}] = (7.035 ± 0.073) × 10−8 m. (c) Impulse response function for the CRL simulation and the theory according to equation (15)[link]. The discrepancy is mainly caused by the cutoff due to the hard aperture cutoff in the simulation.
